Copper Bonded Earth Rods (Threaded And Unthreaded)

Copper Bonded Earth Rods are manufactured from high tensile low carbon steel having boding 99.9% pure electrolytic, the earth rods are manufactured in accordance to BS 4360 grade 43A. The earth rods are formed by roll threading process which ensure strength & maintain the bonded copper along the thread.

ROD DIA (MM) TOTAL LENGTH THREAD DIA PRODUCT CODE
9.5 1200 Unthreaded ECBU0912
12.7 1200 9/16" ECBT1212
12.7 1500 9/16" ECBT1215
12.7 1800 9/16" ECBT1218
12.7 2400 9/16" ECBT1224
12.7 3000 9/16" ECBT1230
14.2 1200 5/8" ECBT1412
14.2 1500 5/8" ECBT1415
14.2 1800 5/8" ECBT1418
14.2 2400 5/8" ECBT1424
14.2 3000 5/8" ECBT1430
17.2 1200 3/4" ECBT1712
17.2 1500 3/4" ECBT1715
17.2 1800 3/4" ECBT1718
17.2 2400 3/4" ECBT1724
17.2 3000 3/4" ECBT1730
25 2400 Unthreaded ECBU1730
25 3000 Unthreaded ECBU2530
Solid Copper Earth Rods (Threaded & Unthreaded)

Externally Threaded

Solid copper earth rod are made of high conductivity hard drawn copper in accordance to BS2874 C101

ROD DIA (MM) TOTAL LENGTH THREAD DIA PRODUCT CODE
9.5 1200 Unthreaded ESCU0912
12.7 1200 9/16" ESCT1212
12.7 1500 9/16" ESCT1215
12.7 1800 9/16" ESCT1218
12.7 2400 9/16" ESCT1224
12.7 3000 9/16" ESCT1230
14.2 1200 5/8" ESCT1412
14.2 1500 5/8" ESCT1415
14.2 1800 5/8" ESCT1418
14.2 2400 5/8" ESCT1424
14.2 3000 5/8" ESCT1430
17.2 1200 3/4" ESCT1712
17.2 1500 3/4" ESCT1715
17.2 1800 3/4" ESCT1718
17.2 2400 3/4" ESCT1724
17.2 3000 3/4" ESCT1730
Solid Copper Earth Rods (Internally Threaded)

Internally Threaded

Solid copper earth rod are made of high conductivity hard drawn copper in accordance to BS2874C101

ROD DIA (MM) TOTAL LENGTH THREAD DIA PRODUCT CODE
14 1200 M10 ESCIT1412
14 1500 M10 ESCIT1415
15 1200 M10 ESCIT1512
15 1500 M10 ESCIT1515
16 1200 M10 ESCIT1612
16 1500 M10 ESCIT1615
20 1200 M12 ESCIT2012
20 1500 M12 ESCIT2015

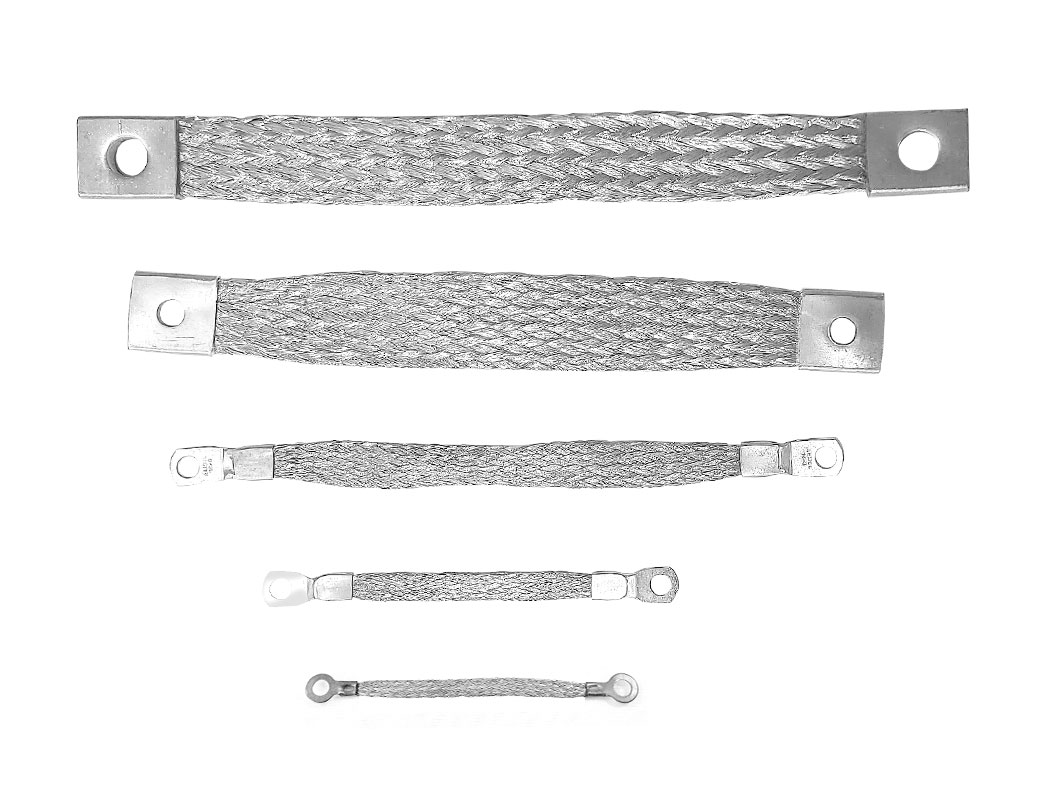

Flexible Bonding Jumper
CROSS SECTIONAL AREA (MM2) NOMINAL DIMENSION (MM) LENGTH OF BRAID (MM) HOLE DIAMETER (A) (MM) PRODUCT CODE
6 12 X 1 200 7 EBJ006200
6 12x1 400 7 EBJ006400
10 15x1.5 200 7 EBJ010200
10 15x 1.5 400 7 EBJO10400
16 19x2.5 200 9 EBJ016200
16 19x2.5 400 9 EBJO016400
25 25x3.0 200 11 EBJ025200
25 25x3.0 400 11 EBJO25400
35 25x3.5 200 11 EBJ035200
35 25x3.5 400 11 EBJ035400
50 30x5.0 200 11 EBJ050200
50 30x5.0 400 11 EBJ050400
70 32x6.0 200 13 EBJO70200
70 32x6.0 400 13 EBJO70400
95 37x6.0 200 13 EBJO95200
95 37x6.0 400 13 EBJO95400
120 45x6.0 200 17 EBJ120200
120 45x6.0 400 17 EBJ120400
150 50x8.0 200 17 EBJ150200
150 50x8.0 400 17 EBJ150400
Earth Bar

Earth bars are also available for installations within earth housings. Available in vaious sizes and specifications, with or withouut disconnecting links.

  • Material: Drawn copper bar.
  • Base: Plastic
  • Fittings: M10 head set screws, nuts and washers.
DESCRIPTION LENGTH (MM) PRODUCT CODE
6 Way 400 EEBD06
8 Way 500 EEBD08
10 Way 650 EEBD10
12 Way 750 EEBD12
14 Way 850 EEBD14
16 Way 950 EEBD16
18 Way 1050 EEBD18
20 Way 1200 EEBD20
22 Way 1300 EEBD22
24 Way 1400 EEBD24
26 Way 1500 EEBD26
28 Way 1650 EEBD28
Disconnecting Link

Disconnecting link is used to offer a temporary break in the connection to earth allowing inspection and testing of an earth rod while disconnected from the lightening protection system.

  • Material: Copper
LENGTH (MM) PRODUCT CODE
125 EDL125
180 EDL180
Earth Plate

Solid Copper Plate are used as part of earth used as long lasting earthing solution where earth rods are unpractical.

SOLID COPPER EARTH PLATE (MM) PRODUCT CODE COPPER BONDED EARTH PLATE (MM) PRODUCT CODE
300 X 300 X 3 ESCEP333 300 X 300 X 3 ECBEP333
500 X 500 X 3 ESCEP553 500 X 500 X 3 ECBEP553
500 X 500 X 5 ESCEP555 500 X 500 X 5 ECBEP555
600 X 600 X 3 ESCEP663 600 X 600 X 3 ECBEP663
600 X 600 X 5 ESCEP665 600 X 600 X 5 ECBEP665
900 X 900 X 3 ESCEP993 900 X 900 X 3 ECBEP993
900 X 900 X 5 ESCEP995 900 X 900 X 5 ECBEP995
Earth Lattice

Earth Lattice are used to provide earthing continuity. It is a cost effective alternative to earth plate.

LATTICE MATE SIZE COPPER TAPE SIZE PRODUCT CODE
500 * 500 25 * 2 EEL05052
500 * 500 25 * 3 EEL05053
600 * 600 25 * 2 EEL06062
600 * 600 25 * 3 EEL06063
900 * 900 25 * 3 EEL09093
900 * 900 25 * 5 EEL09095
1000 * 1000 25 * 3 EEL10103
1000 * 1000 25 * 5 EEL10105
Earth Block

Brass Earth Blocks are Earth Conductors terminations with a suitable, fully insulated housing.

  • Material: Brass
DESCRIPTION SIZE PRODUCT CODE
4 way Single EEB04(1)
4 way Double EEB04(2)
8 way Double EEB08(2)
Neutral Link Bars

Neutral Link Bars M 10 hexagon bolts. all tunnels have 6mm diameter with two screws, which accommodate up to two cables of 16mm.

  • Material: Brass & Mild Steel Screws
WAY CROSS SECTION (MM) MAIN STUDS TUNNELS PRODUCT CODE
4 19 x 19.5 M10 mm² 16 ENLBO4
9 19 x 19.5 M10 mm² 16 ENLBO9
12 19 x 19.5 M10 mm² 16 ENLB12
18 19 x 19.5 M10 mm² 16 ENLB18
24 19 x 19.5 M10 mm² 16 ENLB24
30 19 x 19.5 M10 mm² 16 ENLB30
36 19 x 19.5 M10 mm² 16 ENLB36
42 19 x 19.5 M10 mm² 16 ENLB42
48 19 x 19.5 M10 mm² 16 ENLB48
60 19 x 19.5 M10 mm² 16 ENLB60
72 19 x 19.5 M10 mm² 16 ENLB72
84 19 x 19.5 M10 mm² 16 ENLB84
96 19 x 19.5 M10 mm² 16 ENLB96
Wiping Glands

Wiping Glands are commonly use for transformer industry.

  • Material: Brass
GLAND SIZE DIA OVER METAL SHEATH OF CABLE (MM) PRODUCT CODE
A 12 TO 51 EWGA
B 25 TO 78 EWGB
C 25 TO 95 EWGC
Earth Pit, Copper Tape, Earthing Compound

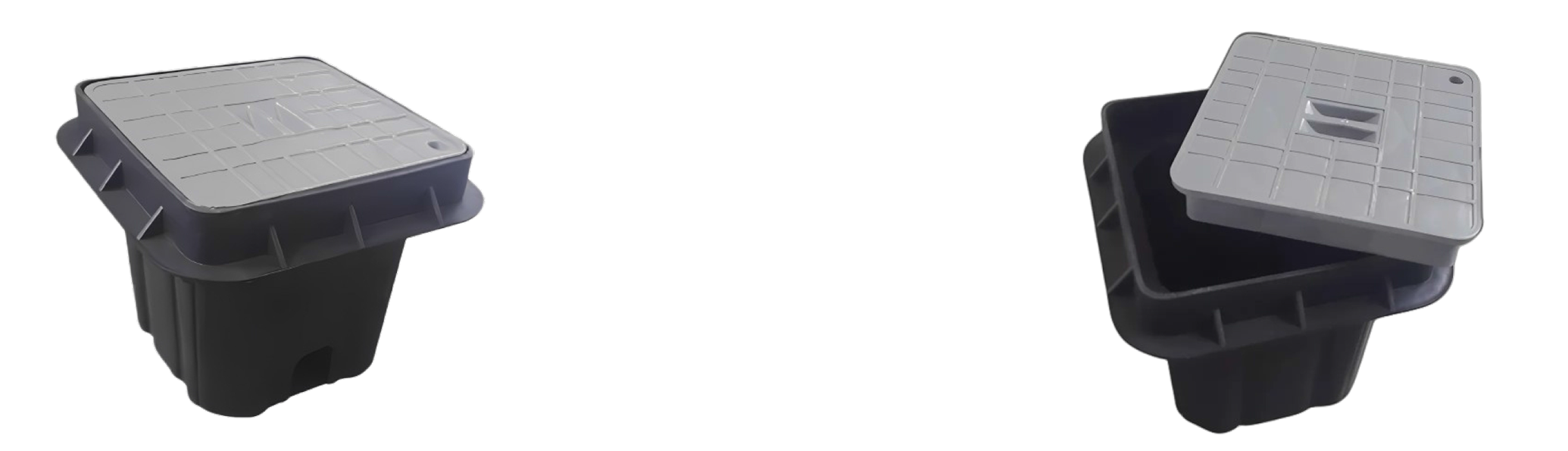

A) Earth Pit

SIZE PRODUCT CODE
245 X 245 EEPP X 245 X 245
300 X 300 EEPP X 300 X 300
500 X 500 EEPP X 500 X 500

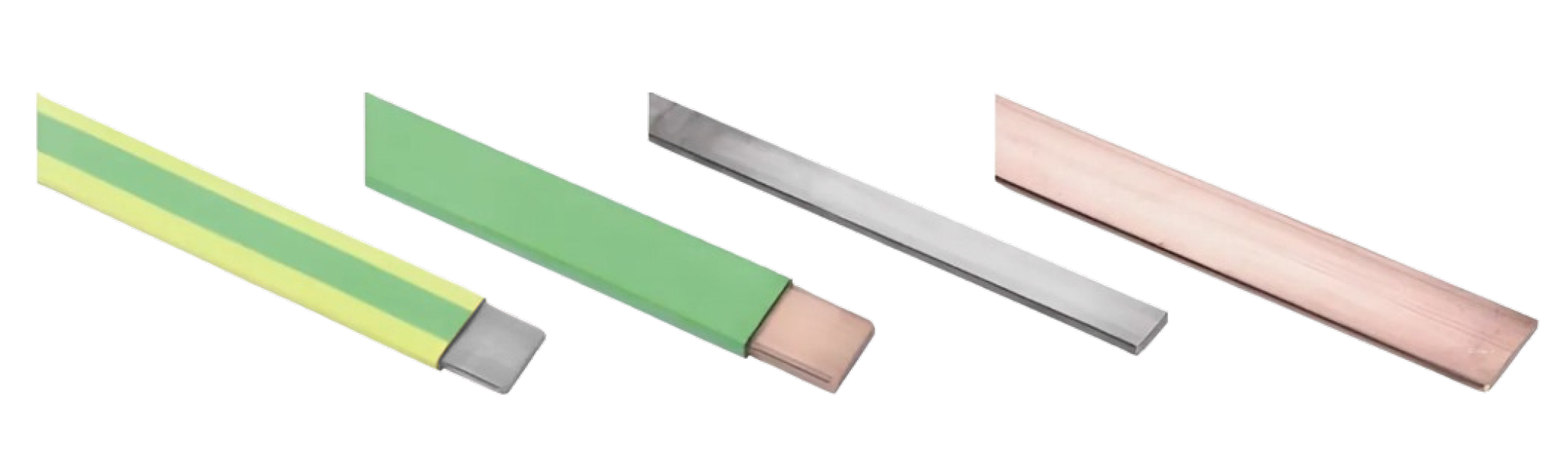

B) Copper Tape

TAPE SIZE (X x Y) MM BARE COPPER TAPE (CODE) PVC COATED COPPER TAPE (CODE) TINNED COPPER TAPE (CODE) PVC COATED TINNED COPPER TAPE (CODE)
12.5 x 1.5 12.5 x 1.5 12.5 x 1.5 12.5 x 1.5 12.5 x 1.5
12.5 x 3 12.5 x 3 12.5 x 3 12.5 x 3 12.5 x 3
20 x 1.5 20 x 1.5 20 x 1.5 20 x 1.5 20 x 1.5
20 x 3 20 x 3 20 x 3 20 x 3 20 x 3
25 x 1.5 25 x 1.5 25 x 1.5 25 x 1.5 25 x 1.5
25 x 3 25 x 3 25 x 3 25 x 3 25 x 3
25 x 4 25 x 4 25 x 4 25 x 4 25 x 4
25 x 6 25 x 6 25 x 6 25 x 6 25 x 6
30 x 3 30 x 3 30 x 3 30 x 3 30 x 3
30 x 6 30 x 6 30 x 6 30 x 6 30 x 6
38 x 3 38 x 3 38 x 3 38 x 3 38 x 3
38 x 5 38 x 5 38 x 5 38 x 5 38 x 5
38 x 6 38 x 6 38 x 6 38 x 6 38 x 6
40 x 4 40 x 4 40 x 4 40 x 4 40 x 4
40 x 6 40 x 6 40 x 6 40 x 6 40 x 6
50 x 3 50 x 3 50 x 3 50 x 3 50 x 3
50 x 4 50 x 4 50 x 4 50 x 4 50 x 4
50 x 6 50 x 6 50 x 6 50 x 6 50 x 6
  • Bare Copper Tape: These are manufactured from high conductivity EC grade Copper.
  • PVC Covered Copper Tape: High conductivity EC Grade Copper Tapes are Covered with PVC
  • Tinned Copper Tape : These are manufactured from high conductivity EC grade Copper & Tinned.
  • PVC Covered Tinned Copper Tape : High conductivity EC Grade Copper Tapes are Covered with PVC.

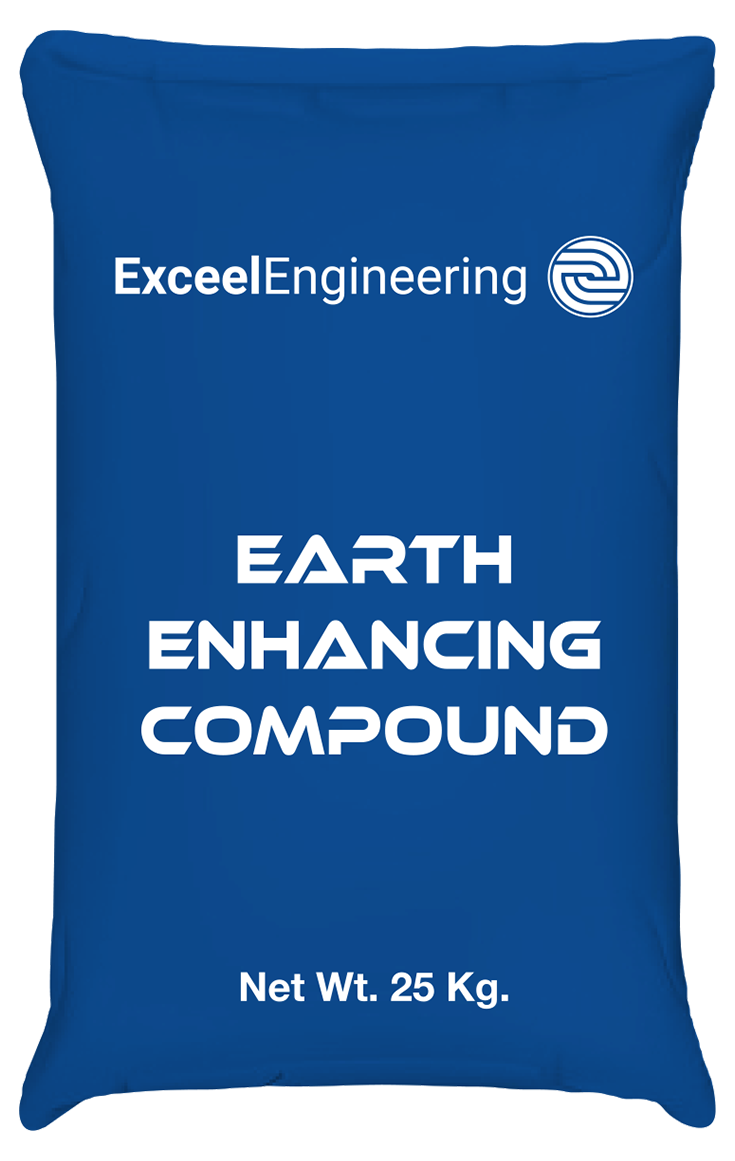

C) Earthing Compound

We offer Standard Pack Size 25kg Also other sizes available on request are 5kg, 10kg, 15kg, & 20kg.

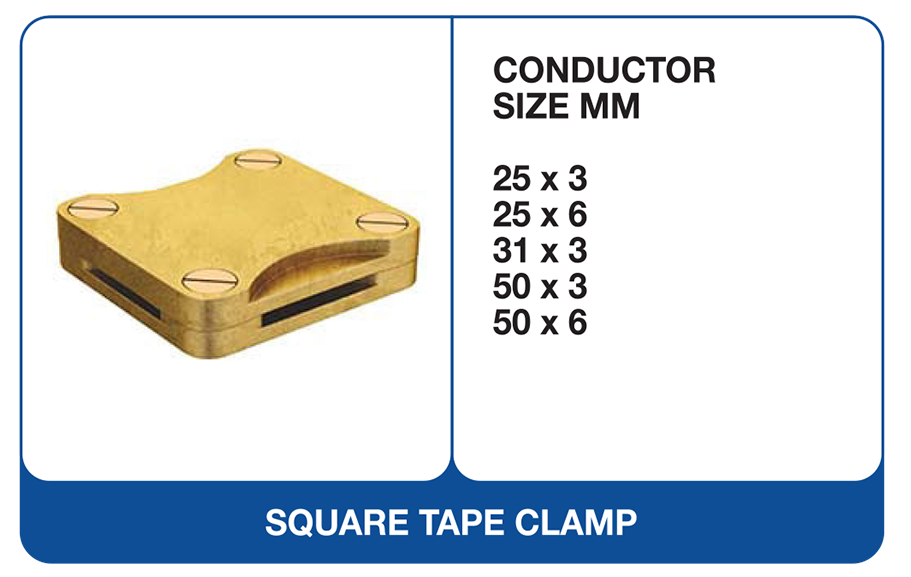

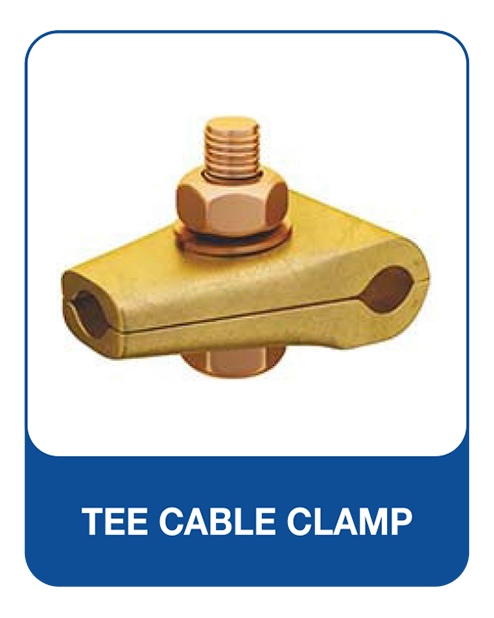

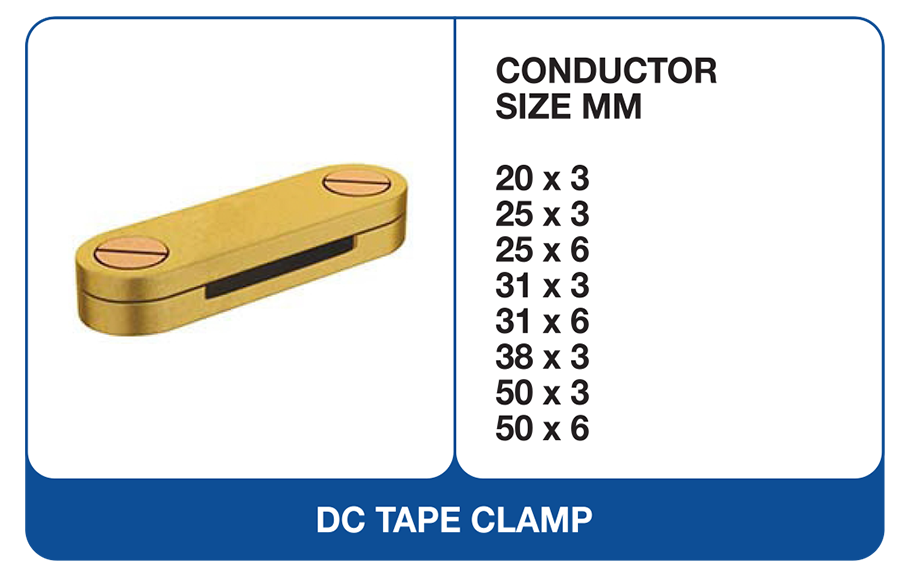

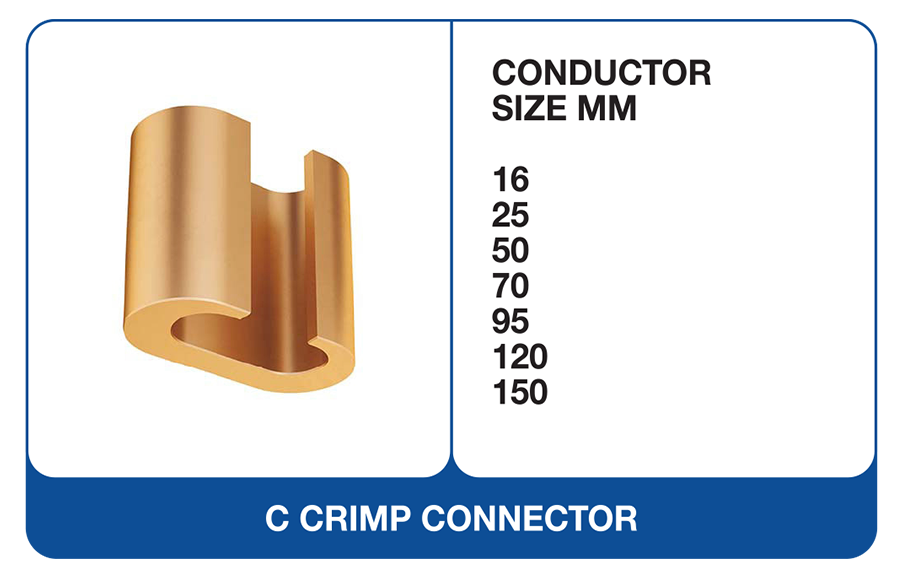

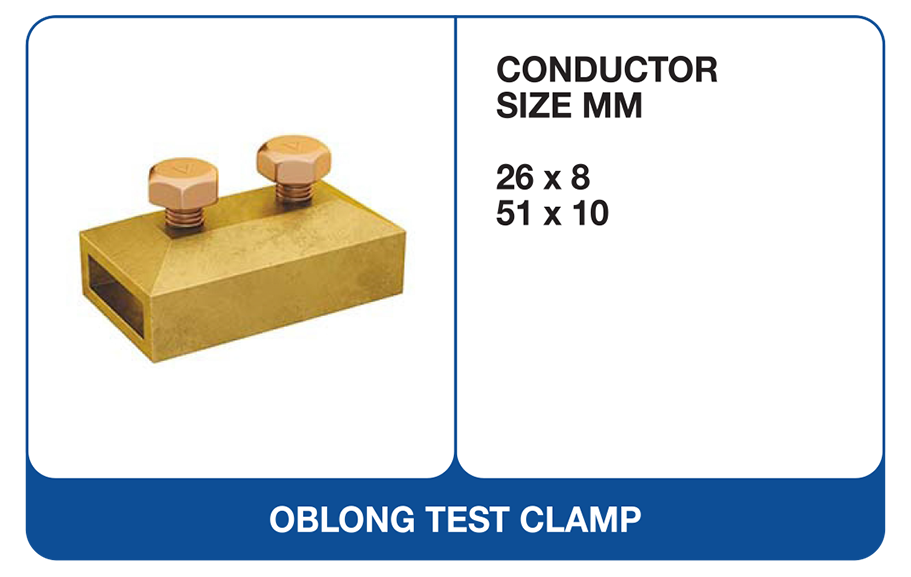

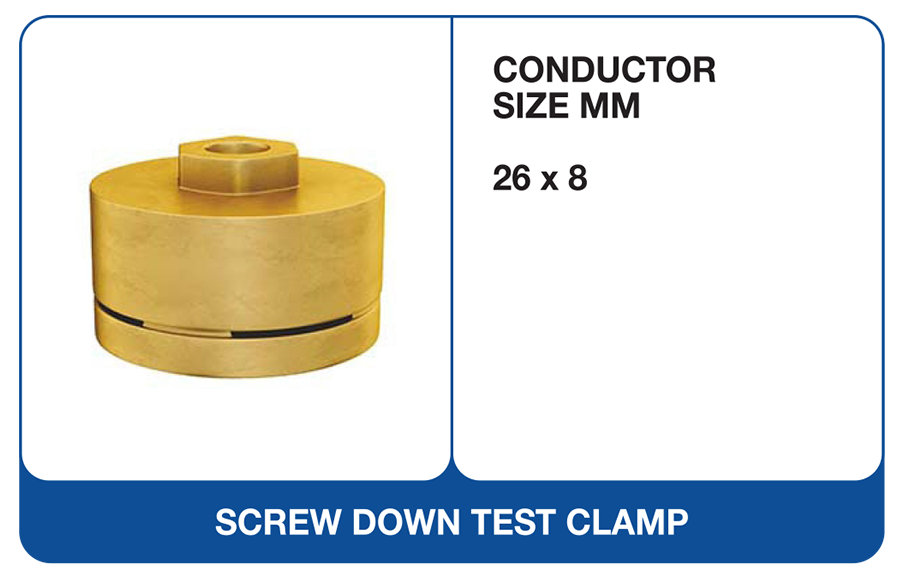

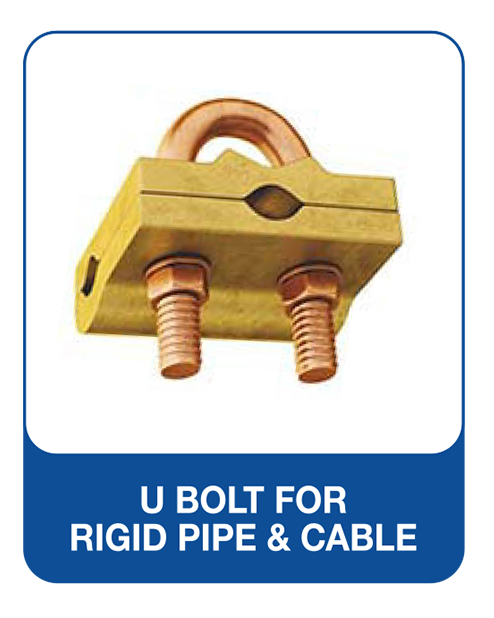

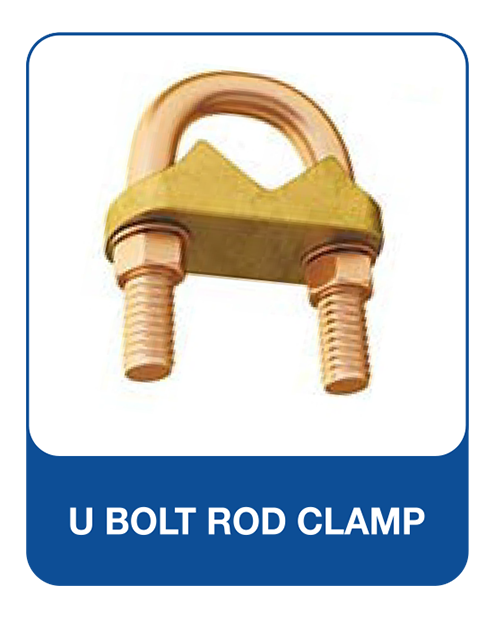

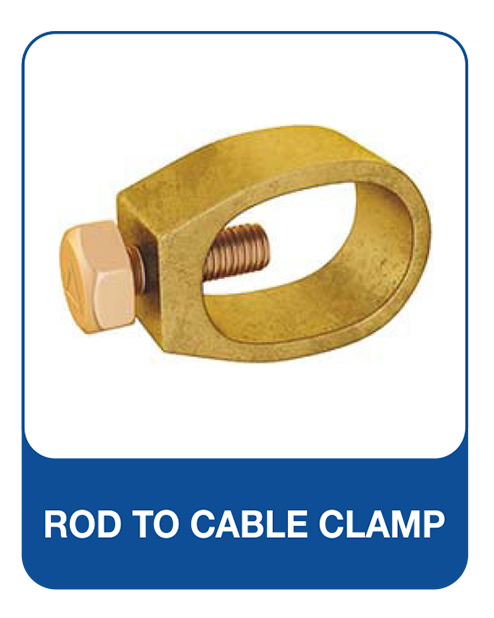

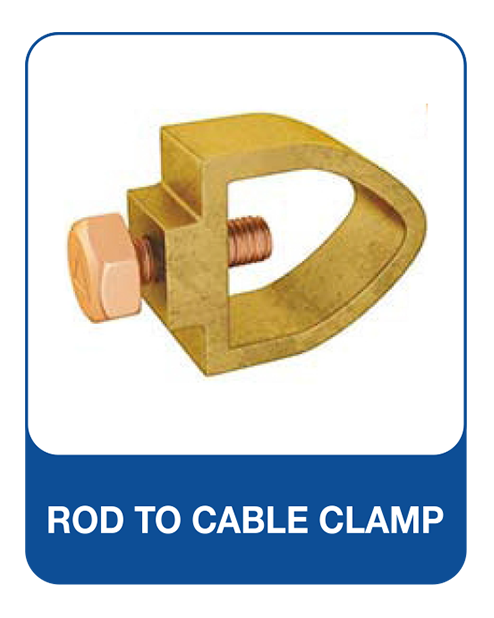

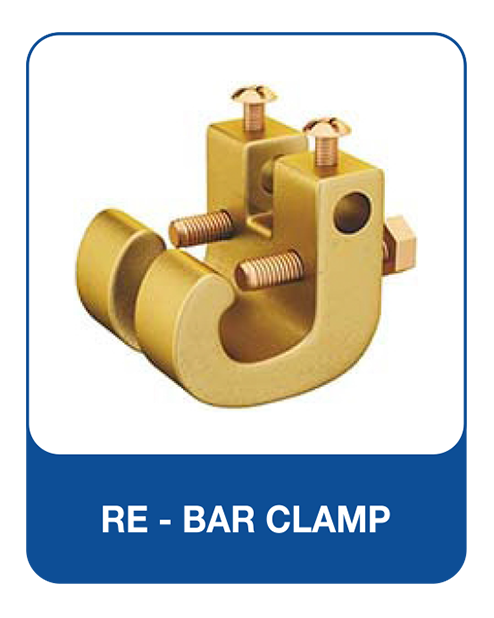

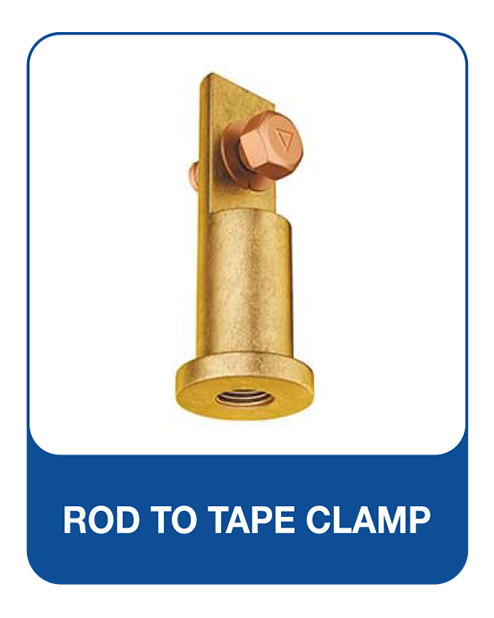

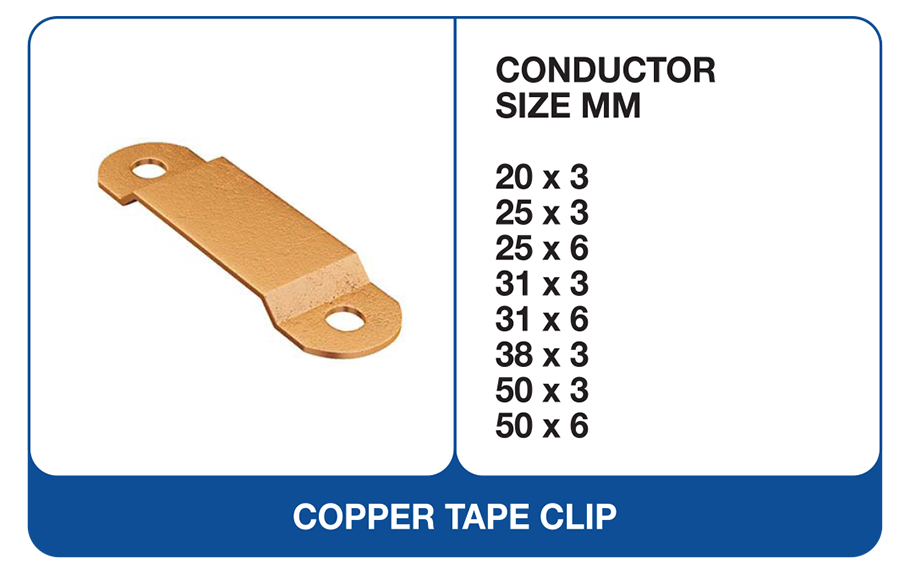

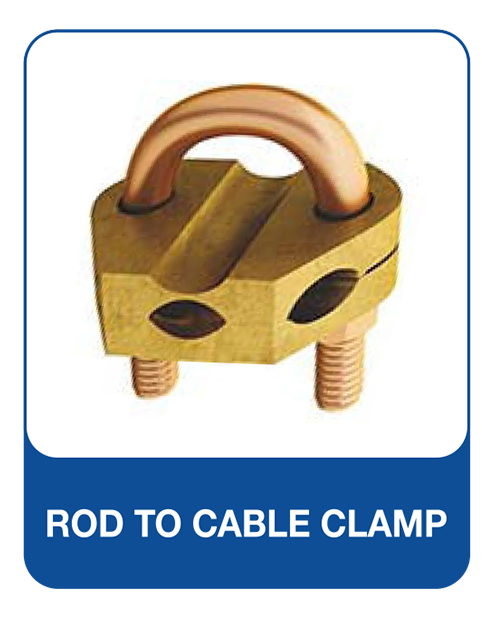

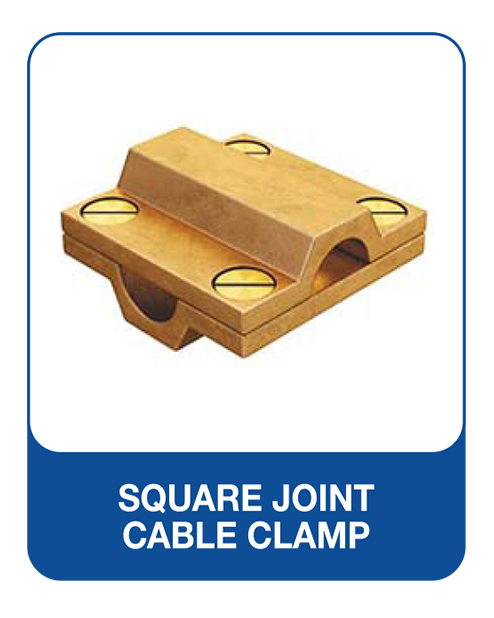

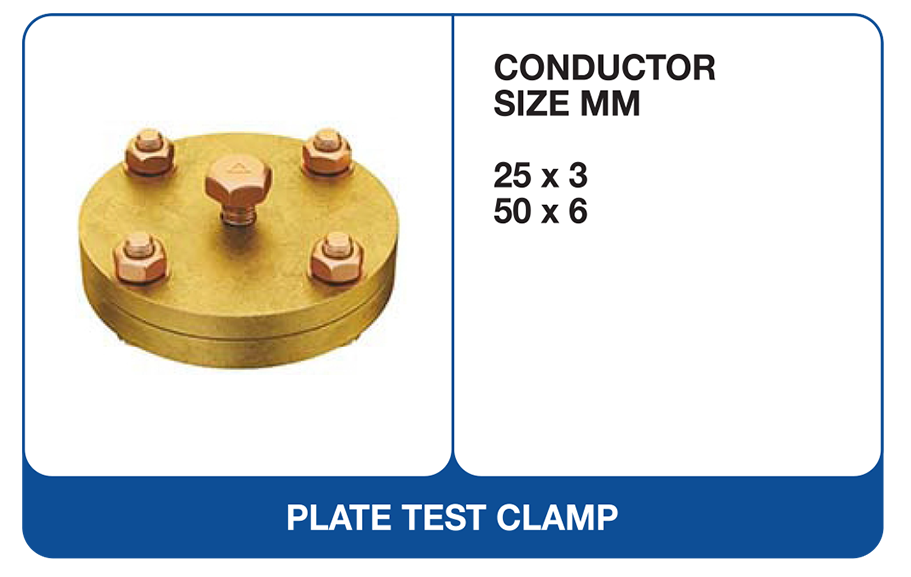

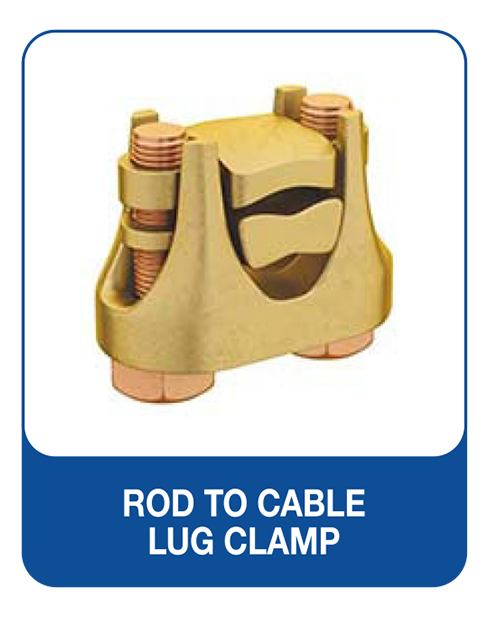

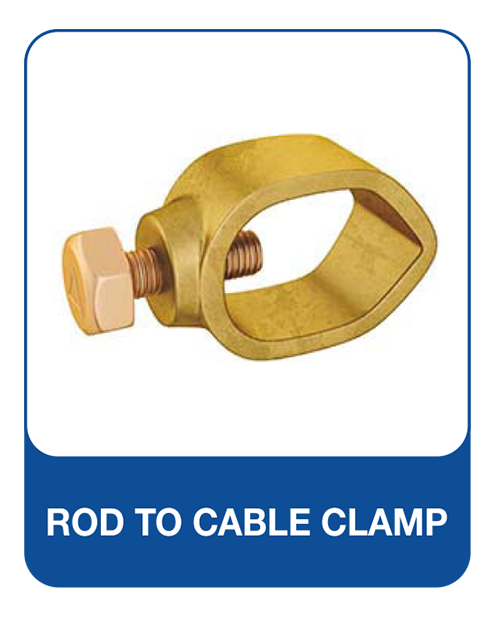

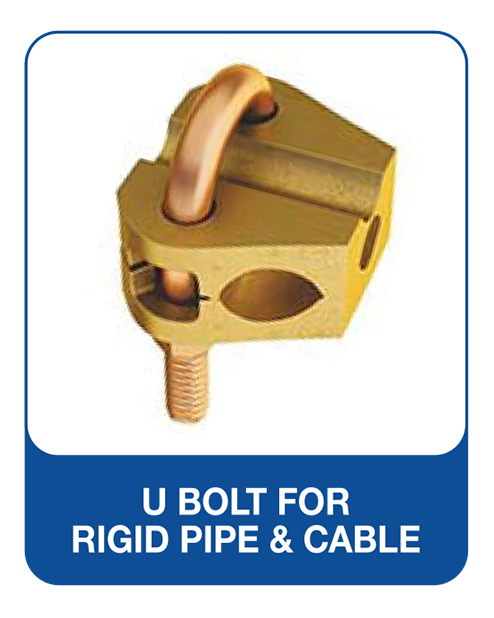

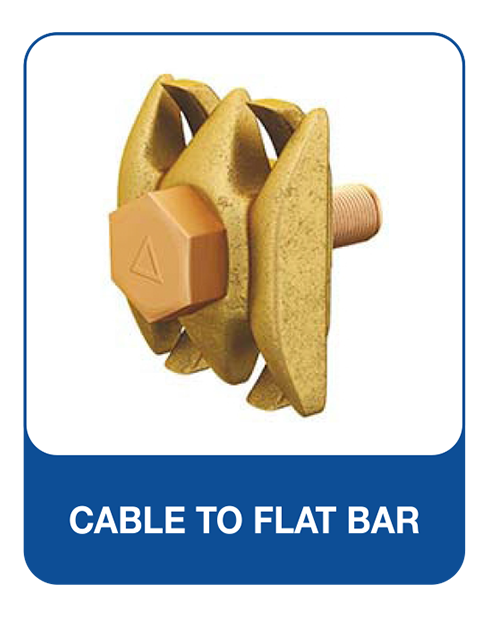

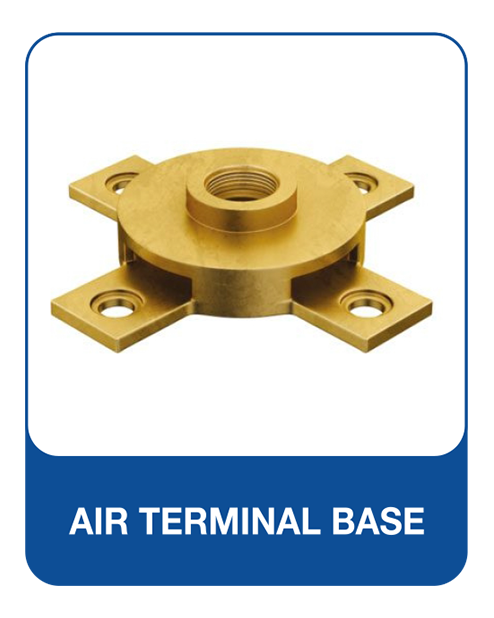

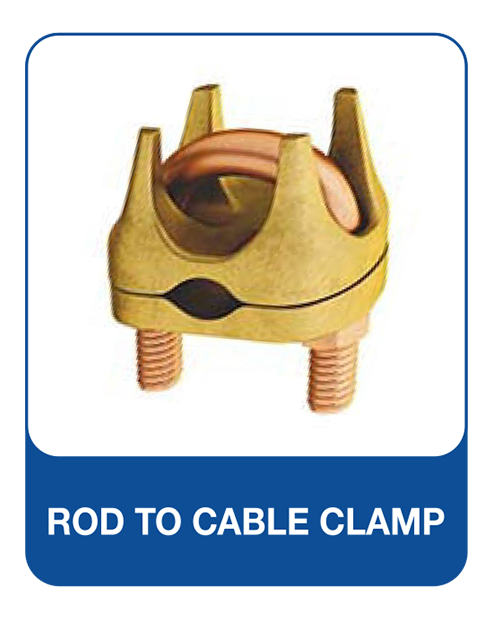

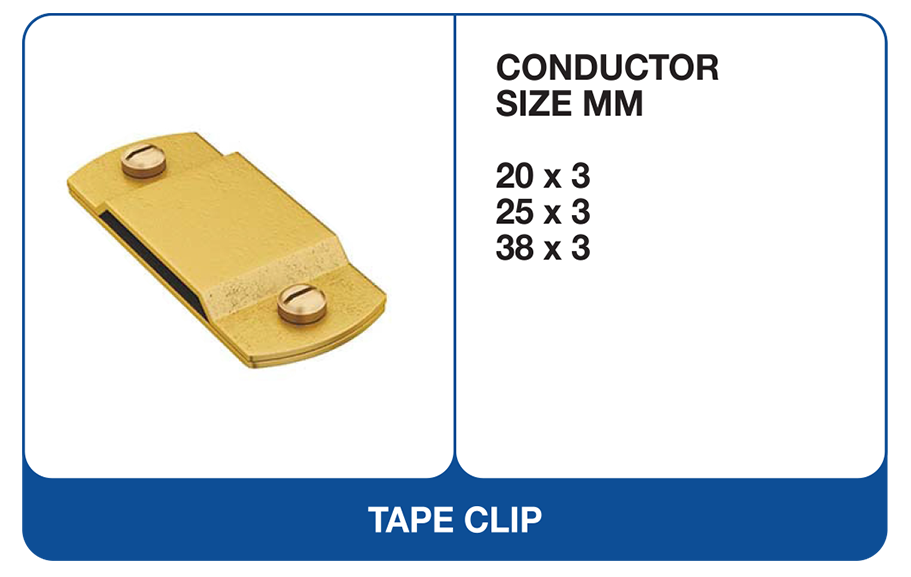

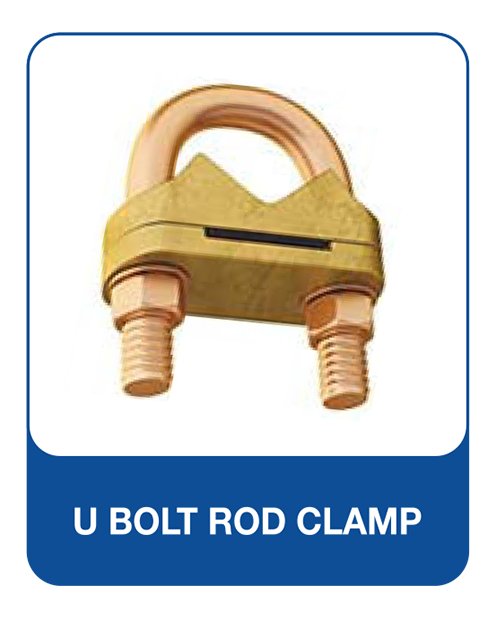

Clamps

Earthing & Lighting Protection

ROD DIA MM
9.5
12.7
14.2
17.2
25.0
