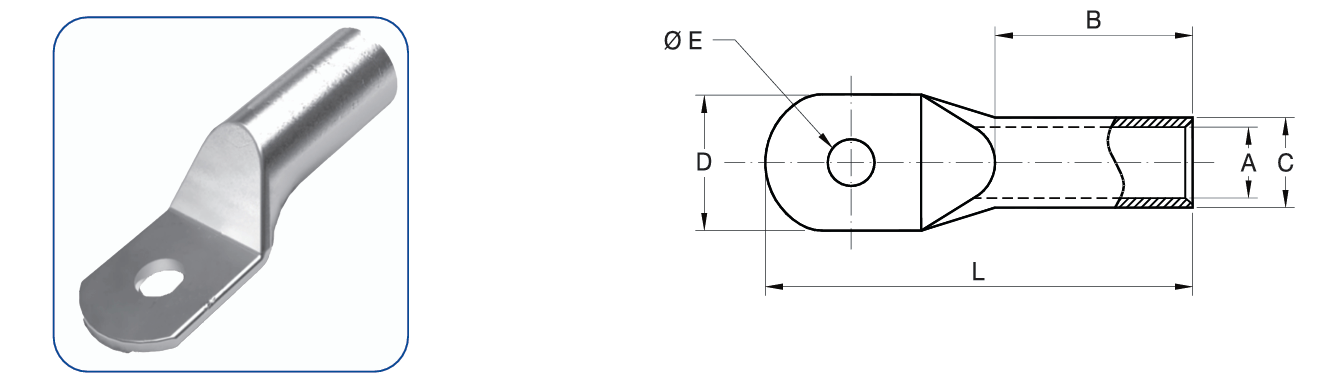

Copper Cable Lugs – Standard Barrel (Medium Duty)
  • Material: E- Copper
  • Finish: Electro - Tinned
  • Features: With / Without Inspection Hole
CABLE SIZE MM² STUD SIZE ØE DIMENSION IN MM PRODUCT CODE
A C D B L
35 6.3
8.3
10.5
13		 8
8
8
8		 10
10
10
10		 15
15
15
17		 13
13
13
13		 38
38
38
43		 EM03506
EM03508
EM03510
EM03513
50 8.3
10.5
13		 9.2
9.2
9.2		 11.2
11.2
11.2		 16
16
18		 16
16
16		 43
43
43		 EM05008
EM05010
EM05013
70 10.5
13 		11.5
11.5 		13.8
13.8 		20
20		 18
18		 50
50		 EM07010
EM07013
95 10.5
14.5		 12.8
12.8		 15.6
15.6		 23
23		 20
20		 55
55		 EM09510
EM09514
120 10.5
14.5		 14.8
14.8		 17.8
17.8		 26
26		 25
25		 60
60		 EM12010
EM12014
150 13
17		 16
16		 19.6
19.6		 30
30		 27
27		 70
70		 EM15013
EM15017
185 13
17		 18
18		 22
22		 32
32		 32
32		 80
80		 EM18513
EM18517
240 13
17		 22
22		 26
26		 38
38		 39
39		 92
92		 EM24013
EM24017
300 13
17		 24
24		 28.7
28.7		 43
43		 42
42		 102
102 		EM30013
EM30017
400 13
17		 28
28		 33.2
33.2		 49
49		 45
45		 113
113		 EM40013
EM40017
Copper Cable Lugs – Standard Barrel (Heavy Duty)
  • Material: E- Copper
  • Finish: Electro - Tinned
  • Features: With / Without Inspection Hole
CABLE SIZE MM² STUD SIZE Ø E DIMENSION IN MM PRODUCT CODE
A C D B L
1.5 4.2
5.2
6.3		 1.8
1.8
1.8		 3.7
3.7
3.7		 8
8
10		 5
5
5		 16
16
18		 EH00104
EH00105
EH00106
2.5 4.2
5.2
6.3
8.3		 2.4
2.4
2.4
2.4		 4
4
4
4		 8
8
10
10		 7
7
7
7		 18
18
20
24		 EH00204
EH00205
EH00206
EH00208
4 5.2
6.3
8.3		 3.1
3.1
3.1		 4.8
4.8
4.8		 10
10
12		 7
7
7		 21
21
24		 EH00405
EH00406
EH00408
6 5.2
6.3
8.3
10.5		 3.8
3.8
3.8
3.8		 5.5
5.5
5.5
5.5		 10
10
12
14		 11
11
11
11		 26
26
30
33		 EH00605
EH00606
EH00608
EH00610
10 5.2
6.3
8.3
10.5		 4.5
4.5
4.5
4.5		 6.2
6.2
6.2
6.2		 12
12
12
17		 11
11
11
11		 28
28
30
33		 EH01005
EH01006
EH01008
EH01010
16 5.2
6.3
8.3
10.5
13		 5.4
5.4
5.4
5.4
5.4		 7.1
7.1
7.1
7.1
7.1		 12
12
12
17
18		 12
12
12
17
18		 32
32
32
32
32		 EH01605
EH01606
EH01608
EH01610
EH01610
25 6.3
8.3
10.5
13		 6.8
6.8
6.8
6.8		 8.8
8.8
8.8
8.8		 13
13
17
17		 13
13
13
13		 32
37
40
40		 EH02506
EH02508
EH02510
EH02513
35 6.3
8.3
10.5
13
17		 8.2
8.2
8.2
8.2
8.2		 10.5
10.5
10.5
10.5
10.5		 16
16
16
19
24		 14
14
14
14
14		 39
39
40
42
50		 EH03506
EH03508
EH03510
EH03513
EH03517
50 6.3
8.3
10.5
13
17		 9.6
9.6
9.6
9.6
9.6		 12.4
12.4
12.4
12.4
12.4		 18
18
18
18
18		 17
17
17
17
17		 43
43
43
43
43		 EH05006
EH05008
EH05010
EH05013
EH05017
70 8.3
10.5
13
14.5
17		 11.1
11.1
11.1
11.1
11.1		 14.3
14.3
14.3
14.3
14.3		 21
21
21
25
25		 19
19
19
19
19		 50
50
50
50
59		 EH07008
EH07010
EH07013
EH07014
EH07017
95 10.5
13
14.5
17		 13.5
13.5
13.5
13.5		 17.4
17.4
17.4
17.4		 25
25
25
25		 20
20
20
20		 55
55
60
60		 EH09510
EH09513
EH09514
EH09517
120 10.5
13
14.5
17		 15.2
15.2
15.2
15.2		 19.4
19.4
19.4
19.4		 29
29
29
29		 22
22
22
25		 60
60
60
65		 EH12010
EH12013
EH12014
EH12017
150 10.5
13
14.5
17		 16.6
16.6
16.6
16.6		 21.1
21.1
21.1
21.1		 30
30
30
30		 27
27
27
27		 70
70
70
70		 EH15010
EH15013
EH15014
EH15017
185 13
14.5
17
-		 18.5
18.5
18.5
-		 23.5
23.5
23.5
-		 34
34
34
-		 32
32
32
-		 80
80
80
-		 EH18513
EH18514
EH18517
-
240 13
14.5
17
21
-		 21.1
21.1
21.1
21.1
21.1		 26.4
26.4
26.4
26.4
26.4		 38
38
38
38
38		 39
39
39
39
39		 92
92
92
92
92		 EH24013
EH24014
EH24017
EH24021
EH24000
300 13
14.5
17
21
-		 23.6
23.6
23.6
23.6
23.6		 29.9
29.9
29.9
29.9
29.9		 43
43
43
43
43		 42
42
42
42
42		 102
102
102
102
102		 EH30013
EH30014
EH30017
EH30021
EH30000
400 13
14.5
17
21
-		 26.5
26.5
26.5
26.5
26.5		 33.5
33.5
33.5
33.5
33.5		 49
49
49
49
49		 45
45
45
45
45		 112
112
112
112
112		 EH40013
EH40014
EH40017
EH40021
EH40000
500 13
14.5
17
21
-		 30
30
30
30
30		 39
39
39
39
39		 55
55
55
55
55		 50
50
50
50
50		 122
122
122
122
122		 EH50013
EH50014
EH50017
EH50021
EH50000
630 14.5
17
21
27
-		 34.5
34.5
34.5
34.5
34.5		 44
44
44
44
44		 64
64
64
64
64		 57
57
57
57
57		 145
145
145
145
145		 EH63014
EH63017
EH63021
EH63027
EH63000
800 17
27
-		 39
39
39		 50.6
50.6
50.6		 80
80
80		 80
80
80		 180
180
180		 EH80017
EH80027
EH80000
1000 27
-		 43
43		 56.2
56.2		 80
80		 90
90		 200
200		 EH100027
EH100000
Copper Cable Lugs - Long Barrel
  • Material: E- Copper
  • Finish: Electro - Tinned
  • Feature: With / Without Inspection Hole
CABLE SIZE MM² STUD SIZE Ø E DIMENSION IN MM PRODUCT CODE
A C D B L
1.5 4.2
5.2
6.3		 1.8
1.8
1.8		 3.7
3.7
3.7		 8
8
10		 7
7
7		 19
19
20		 ELB00104
ELB00105
ELB00106
2.5 4.2
5.2
6.3
8.3		 2.4
2.4
2.4
2.4		 4
4
4
4		 8
8
10
10		 9
9
9
9		 21
21
24
26		 ELB00204
ELB00205
ELB00206
ELB00208
4 5.2
6.3
10.5		 3.8
3.8
3.8		 5.5
5.5
5.5		 10
10
12		 10
10
10		 24
24
27		 ELB00405
ELB00406
ELB00410
6 5.2
6.3
8.3
10.5		 3.8
3.8
3.8
3.8		 5.5
5.5
5.5
5.5		 12
12
12
17		 14
14
14
14		 29
29
33
36		 ELB00605
ELB00606
ELB00608
ELB00610
10 5.2
6.3
8.3
10.5		 4.5
4.5
4.5
4.7		 6.2
6.2
6.2
6.2		 12
12
12
17		 14
14
14
14		 31
31
33
36		 ELB01005
ELB01006
ELB01008
ELB01010
16 6.3
8.3
10.5
13		 5.4
5.4
5.4
5.4		 7.1
7.1
7.1
7.1		 12
12
17
18		 15
15
20
21		 35
35
35
35		 ELB01606
ELB01608
ELB01610
ELB01613
25 6.3
8.3
10.5
13		 6.8
6.8
6.8
6.8		 8.8
8.8
8.8
8.8		 13
13
17
17		 20
20
23
23		 40
40
50
50		 ELB02506
ELB02508
ELB02510
ELB02513
35 6.3
8.3
10.5
13
17		 8.2
8.2
8.2
8.2
8.2		 10.5
10.5
10.5
10.5
10.5		 16
16
16
19
24		 23
23
23
23
23		 48
48
48
50
59		 ELB03506
ELB03508
ELB03510
ELB03513
ELB03517
50 6.3
8.3
10.5
13
17		 9.6
9.6
9.6
9.6
9.6		 12.4
12.4
12.4
12.4
12.4		 18
18
18
18
18		 24
24
24
24
24		 50
50
50
50
50		 ELB05006
ELB05008
ELB05010
ELB05013
ELB05017
70 8.3
10.5
13
14.5
17		 11.1
11.1
11.1
11.1
11.1		 14.3
14.3
14.3
14.3
14.3		 21
21
21
25
25		 30
30
30
30
30		 72
72
72
72
72		 ELB07008
ELB07010
ELB07013
ELB07014
ELB07017
95 10.5
13
14.5
17		 13.5
13.5
13.5
13.5		 17.4
17.4
17.4
17.4		 25
25
25
25		 30
30
30
30		 60
60
65
65		 ELB09510
ELB09513
ELB09514
ELB09517
120 10.5
13
14.5
17		 15.2
15.2
15.2
15.2		 19.4
19.4
19.4
19.4		 29
29
29
29		 35
35
35
35		 70
70
70
75		 ELB12010
ELB12013
ELB12014
ELB12017
150 10.5
13
14.5
17		 16.6
16.6
16.6
16.6		 21.1
21.1
21.1
21.1		 30
30
30
30		 40
40
40
40		 82
82
82
82		 ELB15010
ELB15013
ELB15014
ELB15017
185 13
14.5
17		 18.5
18.5
18.5		 23.5
23.5
23.5		 34
34
34		 45
45
45		 93
93
93		 ELB18513
ELB18514
ELB18517
240 13
14.5
17
21
-		 21.1
21.1
21.1
21.1
21.1		 26.4
26.4
26.4
26.4
26.4		 38
38
38
38
38		 55
55
55
55
55		 108
108
108
108
108		 ELB24013
ELB24014
ELB24017
ELB24021
ELB24000
300 13
14.5
17
21
-		 23.6
23.6
23.6
23.6
23.6		 29.9
29.9
29.9
29.9
29.9		 43
43
43
43
43		 60
60
60
60
60		 120
120
120
120
120		 ELB30013
ELB30014
ELB30017
ELB30021
ELB30000
400 13
14.5
17
21
-		 26.5
26.5
26.5
26.5
26.5		 33.5
33.5
33.5
33.5
33.5		 49
49
49
49
49		 63
63
63
63
63		 130
130
130
130
130		 ELB40013
ELB40014
ELB40017
ELB40021
ELB40000
500 13
14.5
17
21
-		 30
30
30
30
30		 39
39
39
39
39		 55
55
55
55
55		 70
70
70
70
70		 142
142
142
142
142		 ELB50013
ELB50014
ELB50017
ELB50021
ELB50000
630 14.5
17
21
27
-		 34.5
34.5
34.5
34.5
34.5		 44
44
44
44
44		 64
64
64
64
64		 80
80
80
80
80		 168
168
168
168
168		 ELB63014
ELB63017
ELB63021
ELB63027
ELB63000
Copper Cable Lugs - Bell Mouthed
  • Material: E- Copper
  • Finish: Electro - Tinned
  • Feature: With / Without Inspection Hole
CABLE SIZE mm STUD SIZE Ø E DIMENSION IN MM PRODUCT CODE
A B C D L
10 5.2
6.3
8.3
10.5		 4.5
4.5
4.5
4.5		 6.2
6.2
6.2
6.2 		12
12
12
12		 11
11
11
11		 28
28
30
33		 EB01005
EB01006
EB01008
EB01010
16 5.2
6.3
8.3
10.5
13		 5.4
5.4
5.4
5.4
5.4		 7.1
7.1
7.1
7.1
7.1		 12
12
12
18
18		 12
12
12
17
18		 32
32
32
32
36		 EB01605
EB01606
EB01608
EB01610
EB01613
25 6.3
8.3
10.5
13		 6.8
6.8
6.8
6.8		 8.8
8.8
8.8
8.8		 14
14
18
18		 23
23
23
23		 32
32
40
40		 EB02506
EB02508
EB02510
EB02513
35 6.3
8.3
10.5
13
17		 8.2
8.2
8.2
8.2
8.2		 10.5
10.5
10.5
10.5
10.5		 16
16
16
19
24		 14
14
14
14
14		 39
39
39
41
50		 EB03506
EB03508
EB03510
EB03513
EB03517
50 6.3
8.3
10.5
13
17		 9.6
9.6
9.6
9.6
9.6		 12.4
12.4
12.4
12.4
12.4		 18
18
18
18
22		 17
17
17
17
17		 43
43
43
43
43		 EB05006
EB05008
EB05010
EB05013
EB05017
70 8.3
10.5
13
14.5
17		 11.1
11.1
11.1
11.1
11.1		 14.3
14.3
14.3
14.3
14.3		 21
21
21
25
25		 24
24
24
24
24		 50
50
50
50
59		 EB07008
EB07010
EB07013
EB07014
EB07017
95 10.5
13
14.5
17		 13.5
13.5
13.5
13.5		 17.4
17.4
17.4
17.4		 25
25
25
25		 25
25
25
25		 60
60
60
60		 EB09510
EB09513
EB09514
EB09517
120 10.5
13
14.5
17		 15.2
15.2
15.2
15.2		 19.4
19.4
19.4
19.4		 29
29
29
29		 25
25
25
25		 60
60
60
65		 EB12010
EB12013
EB12014
EB12017
150 13
14.5
17
21		 16.6
16.6
16.6
16.6		 21.1
21.1
21.1
21.1		 30
30
30
30		 27
27
27
27		 70
70
70
70		 EB15013
EB15014
EB15017
EB15021
185 14.5
17
21		 18.5
18.5
18.5		 23.5
23.5
23.5		 34
34
34		 32
32
32		 80
80
80		 EB18514
EB18517
EB18521
240 13
14.5
17
21
-		 21.1
21.1
21.1
21.1
21.1		 26.4
26.4
26.4
26.4
26.4		 38
38
38
38
38		 39
39
39
39
39		 92
92
92
92
92		 EB24013
EB24014
EB24017
EB24021
EB24000
300 13
14.5
17
21
-		 23.6
23.6
23.6
23.6
23.6		 29.9
29.9
29.9
29.9
29.9		 43
43
43
43
43		 42
42
42
42
42		 102
102
102
102
102		 EB30012
EB30014
EB30017
EB30021
EB30000
400 13
14.5
17
21
-		 26.5
26.5
26.5
26.5
26.5		 33.5
33.5
33.5
33.5
33.5		 49
49
49
49
49		 45
45
45
45
45		 112
112
112
112
112		 EB40012
EB40014
EB40017
EB40021
EB40000
500 13
14.5
17
21
-		 30
30
30
30
30		 39
39
39
39
39		 55
55
55
55
55		 50
50
50
50
50		 122
122
122
122
122		 EB50012
EB50014
EB50017
EB50021
EB50000
Copper Cable Lug - DIN 46235 (Without Inspection Hole)
  • Material: E- Copper
  • Finish: Electro - Tinned
  • Feature: With / Without Inspection Hole
CABLE SIZE MM² STUD SIZE Ø E DIMENSION IN MM PRODUCT CODE
A C D B L
10 5.3
6.4
8.4		 4.5
4.5
4.5		 6
6
6		 9
9
13		 20
20
20		 36
36
39		 EDN01005
EDN01006
EDN01008
16 6.3
8.3
10.5
13		 5.5
5.5
5.5
5.5		 8.5
8.5
8.5
8.5		 13
13
17
17		 20
20
20
20		 50
50
54
54		 EDN01606
EDN01608
EDN01610
EDN01613
25 6.3
8.3
10.5
13		 7
7
7
7		 10
10
10
10		 14
16
17
19		 22
22
22
22		 48
51
53
54		 EDN02506
EDN02508
EDN02510
EDN02513
35 8.3
10.5
13		 8.2
8.2
8.2		 12.5
12.5
12.5		 17
19
21		 24
24
24		 56
58
58		 EDN03508
EDN03510
EDN03513
50 8.3
10.5
13		 10
10
10		 14.5
14.5
14.5		 20
21
23		 30
30
30		 66
70
70		 EDN05008
EDN05010
EDN05013
70 8.3
10.5
13
16		 11.5
11.5
11.5
11.5		 16.5
16.5
16.5
16.5		 24
24
24
30		 32
32
32
32		 68
70
72
74		 EDN07008
EDN07010
EDN07013
EDN07016
95 10.5
13		 13.5
13.5		 19
19		 27
27		 35
35		 82
84		 EDN09510
EDN09513
120 10.5
13
17
21		 15.5
15.5
15.5
15.5		 21
21
21
21		 32
32
32
32		 38
38
38
38		 86
87
96
92		 EDN12010
EDN12013
EDN12017
EDN12021
150 10.5
13
17
21		 17
17
17
17		 23.5
23.5
23.5
23.5		 33
34
34
40		 40
40
40
40		 94
94
97
100		 EDN15010
EDN15013
EDN15017
EDN15021
185 10.5
13
17
21		 19
19
19
19		 25.5
25.5
25.5
25.5		 36
37
37
40		 42
42
42
42		 97
100
101
105		 EDN18510
EDN18513
EDN18517
EDN18521
240 13
17
21		 21.5
21.5
21.5		 29
29
29		 40
40
40		 45
45
45		 108
111
115		 EDN24013
EDN24017
EDN24021
300 13
17
21		 24.5
24.5
24.5		 31
31
31		 45
45
45		 50
50
50		 118
118
123		 EDN30013
EDN30017
EDN30021
400 17
21		 27.5
27.5		 38.5
38.5		 54
54		 75
75		 140
145		 EDN40017
EDN40021
500 13
17
21		 31
31
31		 42
42
42		 60
60
60		 75
75
75		 150
150
150		 EDN50013
EDN50017
EDN50021
630 17
21		 34
34		 44
44		 62
62		 85
85		 160
160		 EDN63017
EDN63021
800 17
27		 40
40		 52
52		 75
75		 100
100		 195
195		 EDN80017
EDN80027
Copper Cable Lugs with Two Holes
  • Material: E- Copper
  • Finish: Electro - Tinned
  • Feature: With / Without Inspection Hole
CABLE SIZE MM² STUD SIZE Ø E DIMENSION IN MM PRODUCT CODE
A C D P B L
35 10.5 8.2 10.6 16.5 60 17 101 E2H03510
50 10.5 9.6 12.4 18 66 30 104 E2H05010
70 10.5 11.1 14.3 21 76 32 110 E2H07010
95 10.5 13.6 17.4 25 66 35 113 E2H09510
120 13 15.1 19.4 28 70 38 120 E2H12013
150 13 16.6 21.1 31 72 45 135 E2H15013
185 14.5 18.6 23.4 35 76 55 150 E2H18514
240 14.5 21.1 26.4 38 78 57 152 E2H24014
300 14.5 23.6 29.9 42 78 57 162 E2H30014
400 14.5 27.5 35.5 52 80 63 166 E2H40014
500 14.5 30 37 55 80 63 166 E2H50014
630 14.5 34 41 60 82 72 182 E2H63014
Copper Cable Lugs with Four Holes
  • Material: E- Copper
  • Finish: Electro - Tinned
  • Feature: With / Without Inspection Hole
CABLE SIZE MM² STUD SIZE Ø E DIMENSION IN MM PRODUCT CODE
A C D B L
240 8.5
10.5		 21 28 58 47 112 E4H24008
E4H24010
300 8.5
10.5		 23.5 31 58 47 112 E4H30008
E4H30010
400 8.5
10.5		 21 28 58 47 112 E4H40008
E4H40010
500 8.5
10.5		 30.1 38.9 58 50 124 E4H50008
E4H50010
630 8.5
10.5		 34.5 44 65 65 144 E4H63008
E4H63010
Connector Joint - Regular & Long Barrel
  • Material: E- Copper
  • Finish: Electro - Tinned
  • Feature: With / Without Inspection Hole
CABLE SIZE MM² A (MM) C (MM) L-REGULAR (MM) PRODUCT CODE L-LONG (MM) PRODUCT CODE
1.5 1.8 3.7 12 ECR001 22 ECLB001
2.5 2.4 4 15 ECR002 22 ECLB002
4 3.1 4.8 15 ECR004 22 ECLB004
6 3.8 5.5 15 ECR006 22 ECLB006
10 4.5 6.2 20 ECR010 22 ECLB010
16 5.4 7.1 20 ECR016 35 ECLB016
20 6.1 7.7 22 ECR020 35 ECLB020
25 6.8 8.8 32 ECRO25 35 ECLBO25
35 8.2 10.6 36 ECRO35 47 ECLBO35
50 9.5 12.4 40 ECROSO 47 ECLBO50
70 11.1 14.3 45 ECRO70 50 ECLBO70
95 13.5 17.4 45 ECROSS 50 ECLBO95
120 15 19.4 45 ECR120 65 ECLB120
150 16.5 21.2 55 ECR150 65 ECLB150
185 18.5 23.5 60 ECR185 65 ECLB185
240 21 26.5 80 ECR240 90 ECLB240
300 23.5 30 85 ECR300 90 ECLB300
400 27.5 35.5 85 ECR400 90 ECLB400
500 30 38 100 ECR500 115 ECLB500
630 34.5 44 110 ECR630 115 ECLB630
800 39 50.6 150 ECR800 200 ECLB800
1000 43 56.2 170 ECR1000 230 ECLB1000
Bi-metallic Lugs
  • Material: E-Copper & AL 99.6%
  • Finish : Natural Bright
  • Feature : Barrel Filled with Corrossion Inhabitant compound & Capped

These Bimetallic cable Lugs are manufatured out of Aluminium Tubes of E.C. Grade having conductivity of 60% I.A.C.S. as per IS 5082. These Aluminum Lugs are Fused with E.C. Grade Copper Bushes by fusion process. The bimetallic Surface is sealed with special Green colour anti-galvanic compound for preventing bimetallic galvanic electro corrosion. The barrel of the lug is filled with corrosion inhibiting compound and are supplied with PVC cap.

CABLE SIZE MM² STUD SIZE ØE DIMENSION IN MM PRODUCT CODE
A C D P B L
25 10.5 7 12 20 3 30 70 EBM02510
35 10.5 8 14 20 5 30 75 EBM03510
50 10.5 10 16 20 5 37 85 EBM0S010
70 13 10.2 20 25 5 45 90 EBMO07013
95 13 13.5 22 25 5 50 95 EBM09513
120 13 15 22 25 5 60 105 EBM12013
150 13 16.5 25 25 5 60 106 EBM15013
185 13 18 30 35 6 60 130 EBM18513
240 13 22 32 35 6 65 135 EBM24013
300 17 23.5 35 35 7 70 140 EBM30017
400 17 26.5 35 35 7 75 145 EBM40017
500 17 30 47 50 10 90 195 EBM50017
630 17 34 50 50x50 10 90 195 EBM63017
Bi-metallic Connectors
  • Material:E-Copper & AL 99.6%
  • Finish : Natural Bright
  • Feature : Barrel Filled with Corrossion Inhabitant compound & Capped
ALUMINIUM CABLE MM² COPPER CABLE MM² DIMENSION IN MM PRODUCT CODE
A-CU C-CU B-CU A1-ALU C1-ALU B-ALU L
25 16 5.6 12.2 29 6.5 16 45 90 ECBM02516
35 16 5.6 12.2 29 8 16 45 90 ECBM03516
50 25 7 12.2 29 9 20 45 90 ECBM05025
70 35 8 12.2 29 11 20 45 90 ECBM07035
95 50 9.5 21 33 12.5 20 45 92 ECBM09550
95 70 11 12.2 33 12.5 20 45 92 ECBM09570
120 70 11 21 33 13.7 25 61 110 ECBM12070
120 95 13 21 33 13.7 25 61 110 ECBM12095
150 95 13 21 33 15.5 25 61 110 ECBM15095
150 120 14.2 21 33 15.5 25 61 110 ECBM150120
185 120 14.2 21 33 17 32 61 110 ECBM185120
185 150 16 21 43 17 32 61 110 ECBM185150
240 150 16 21 43 19.5 32 61 110 ECBM240150
240 185 18 26.2 43 19.5 32 61 122 ECBM240185
Ring Type Copper Terminal (Non-Insulated)
  • Material: E- Copper
  • Finish: Electro - Tinned
CABLE SIZE MM² STUD SIZE Ø E DIMENSION IN MM PRODUCT CODE
A C D F B H L1 J
1.5 2.2
2.6
3.2
3.7
4.2
5.2
6.4		 1.6
1.6
1.6
1.6
1.6
1.6
1.6		 3.2
3.2
3.2
3.2
3.2
3.2
3.2		 6
6
6
6
6
8
10		 0.8
0.8
0.8
0.8
0.8
0.8
0.8		 5
5
5
5
5
5
5		 4
4
4
4
4
5
6		 11
11
11
11
11
11
13		 14
14
14
14
14
16
18		 ER-7103
ER-7000
ER-7001
ER-7002
ER-7003
ER-7005
ER-7107
2.5 3.2
3.7
4.2
5.2
6.4
8.2
8.2
10.2
12.7		 2.3
2.3
2.3
2.3
2.3
2.3
2.3
2.3
2.3		 3.9
3.9
3.9
3.9
3.9
3.9
3.9
3.9
3.9		 6.5
6.5
8
8
10
12
16
16
18		 0.8
0.8
0.8
0.8
0.8
0.8
0.8
0.8
0.8		 5
5
5
5
5
5
5
5
5		 3.5
3.5
5
5
7
9
10
10
14		 9.5
9.5
12
12
13
16
17
17
20		 12.7
12.7
16
16
18
22
25
25
19		 ER-7107
ER-7108
ER-7109
ER-7110
ER-7111
ER-7113
ER-7114
ER-7115
ER-7047
4.6 4.2
5.2
6.4
8.2
8.2
9.7		 3.5
3.5
3.5
3.5
3.5
3.5		 5.5
5.5
5.5
5.5
5.5
5.5		 10
10
12
12
14
14		 1
1
1
1
1
1		 6
6
6
6
6
6		 5
5
6
6
10.5
10.5		 14
14
14
14
18.5
18.5		 19
20
20
25.5
25.5
30		 ER-7112
ER-7016
ER-7017
ER-7018
ER-7020
ER-7021
10 4.2
5.2
6.4
8.2
10.2
12.7		 4.3
4.3
4.3
4.3
4.3
4.3		 6.3
6.3
6.3
6.3
6.3
6.3		 10
10
12
16
22
22		 1
1
1
1
1
1		 8
8
8
8
8
8		 7
7
7
7
10
10		 17
17
17
19
23
23		 22
22
23
27
34
34		 ER-7118
ER-7025
ER-7120
ER-7121
ER-7123
ER-7126
16 6.4
8.2
10.2
12.7		 5.6
5.6
5.6		 8
8
8		 16
16
22
22		 1.2
1.2
1.2
1.2		 10
10
10
10		 8
8
8
8		 22
22
24
24		 30
30
35
35		 ER-7030
ER-7128
ER-7033
ER-7129
25 6.4
8.2
10.2
12.7


 7.5
7.5
7.5
7.5		 11.1
11.1
11.1
11.1		 16
16
16
16		 1.8
1.8
1.8
1.8		 11
11
11
11		 6
6
6
6		 22
22
22
31		 30
30
30
42		 ER-7034
ER-7035
ER-7137
ER-7136
35 6.4
8.2
10.2
12.7		 9
9
9
9		 12.6
12.6
12.6
12.6		 16
16
22
22		 1.8
1.8
1.8
1.8		 12
12
12
12		 6
6
15
15		 23
23
31
31		 31
31
42
42		 ER-7133
ER-7138
ER-7135
ER-7040
50 8.2
10.2
12.7
16.2		 10.5
10.5
10.5
10.5		 14.1
14.1
14.1
14.1		 18
24
24
32		 1.8
1.8
1.8
1.8		 16
16
16
16		 12
14
14
15		 34
36
36
38		 43
48
48
54		 ER-7136
ER-7138
ER-7142
ER-7139
70 10.2
12.7
16.2		 12
12
12		 16
16
16		 22
22
28		 2
2
2		 18
18
18		 11
11
16		 36
36
40		 47
47
54		 ER-7140
ER-7043
ER-7142
95 10.2
12.7
16.2		 13.5
13.5
13.5		 18.1
18.1
18.1		 24
24
28		 2.3
2.3
2.3		 20
20
20		 12
12
17		 38
38
44		 50
50
58		 ER-7144
ER-7044
ER-7145
Ring Type Copper Terminal (Insulated)
  • Material: E- Copper
  • Finish: Electro - Tinned
CABLE SIZE MM² STUD SIZE Ø E DIMENSION IN MM PRODUCT CODE
A C D F B H L1 J J1 C1 L3
1.5 2.2
2.6
3.2
3.7
4.2
5.2
6.4		 1.6
1.6
1.6
1.6
1.6
1.6
1.6		 3.2
3.2
3.2
3.2
3.2
3.2
3.2		 6
6
6
6
6
8
10		 0.8
0.8
0.8
0.8
0.8
0.8
0.8		 5
5
5
5
5
5
5		 4
4
4
4
4
5
6		 11
11
11
11
11
11
13		 14
14
14
14
14
16
18		 10
10
10
10
10
10
10		 4.8
4.8
4.8
4.8
4.8
4.8
4.8		 19
19
19
19
19
21
23		 ER-7052
ER-7053
ER-7054
ER-7055
ER-7056
ER-7062
ER-7066
2.5 3.2
3.7
4.2
5.2
6.4
8.2
8.2
10.2
12.7		 2.3
2.3
2.3
2.3
2.3
2.3
2.3
2.3
2.3		 3.9
3.9
3.9
3.9
3.9
3.9
3.9
3.9
3.9		 6.5
6.5
8
8
10
12
16
16
18		 0.8
0.8
0.8
0.8
0.8
0.8
0.8
0.8
0.8		 5
5
5
5
5
5
5
5
5		 3.5
3.5
5
5
7
9
10
10
14		 9.5
9.5
12
12
13
16
17
17
20		 12.7
12.7
16
16
18
22
25
25
19		 10
10
10
10
10
10
10
10
14		 5.5
5.5
5.5
5.5
5.5
5.5
5.5
5.5
7.1		 17.7
17.7
21
21
23
27
30
30
34		 ER-7068
ER-7069
ER-7071
ER-7072
ER-7074
ER-7077
ER-7079
ER-7080
ER-7082
4.6 4.2
5.2
6.4
8.2
8.2
9.7		 3.5
3.5
3.5
3.5
3.5
3.5		 5.5
5.5
5.5
5.5
5.5
5.5		 10
10
12
12
14
14		 1
1
1
1
1
1		 6
6
6
6
6
6		 5
5
6
6
10.5
10.5		 14
14
14
14
18.5
18.5		 19
20
20
25.5
25.5
30		 14
14
14
14
14
14		 7.1
7.1
7.1
7.1
7.1
7.1		 27
27
28
28
33.5
33.5		 ER-7085
ER-7086
ER-7089
ER-7090
ER-7094
ER-7095
Fork Type Copper Terminal (Non-Insulated)
  • Material: E-Copper & AL 99.6%
  • Finish : Natural Bright / Electro Tinned
"Size Sq.MM²." "STUD SIZE ØE" DIMENSION IN MM ± 3% PRODUCT CODE (INSULATED)
A C D T B P L L1
1.5 5.1 1.6 3.2 8 0.8 5 10 22 17 EF-7214
3.5 1.6 3.2 6.8 0.8 5 4.8 14 8.8 EF-7249
3 2 2.8 6.2 0.4 5 3.1 13 10.5 EF-7250
2.5 3.5 2.3 3.9 6.5 0.8 5 4.3 15 11.8 EF-7251
5 2.6 4.6 10.6 1.6 6.2 6.2 21 12.4 EF-7280
4-6 3.1 3.5 5.5 6 1 6 5.5 15 11.5 EF-7252
3.5 3.5 5.5 6 1 6 5 15 11 EF-7253
10 6.5 4.5 6.9 16 1.2 8 11 27 19 EF-7254
8.2 4.5 6.9 16 1.2 8 11 27 19 EF-7255
Fork Type Copper Terminal (Insulated)
  • Material: E-Copper & AL 99.6%
  • Finish : Natural Bright / Electro Tinned
"Size Sq.MM²." "STUD SIZE ØE" DIMENSION IN MM ± 3% PRODUCT CODE (INSULATED)
A C D T B P L L1 C1 J1 L3
1.5 5.1 1.6 3.2 8 0.8 5 10 22 17 4.8 10 26 EFI-7925
3.5 1.6 3.2 6.8 0.8 5 4.8 14 8.8 4.8 10 19 EFI-7926
3 2 2.8 6.2 0.4 5 3.1 13 10.5 4.8 10 18 EFI-7927
2.5 3.5 2.3 3.9 6.5 0.8 5 4.3 15 11.8 5.5 10 20 EFI-7928
5 2.6 4.6 10.6 1.6 6.2 6.2 21 12.4 5.5 10 24.8 EFI-7929
4-6 3.1 3.5 5.5 6 1 6 5.5 15 11.5 7.1 14 23 EFI-7930
3.5 3.5 5.5 6 1 6 5 15 11 7.1 14 23 EFI-7931
10 6.5 4.5 6.9 16 1.2 8 11 27 19 7.9 16 35 EFI-7932
8.2 4.5 6.9 16 1.2 8 11 27 19 7.9 16 35 EFI-7933
Pin Type Copper Terminal (Non-Insulated)
  • Material: E-Copper & AL 99.6 %
  • Finish : Natural Bright / Electro Tinned
CABLE SIZE MM² Dimension in mm Type PRODUCT CODE
A C D T B P L
1.5 1.6 3.2 1.9 0.8 5 10 17 I EP-9
2.5 2.3 3.9 1.9 0.8 5 10 17 I EP-1
4 2.9 4.9 2.7 1 6 10 20 I EP-3
6 3.6 5.6 2.7 1 6 10 20 I EP-5
6 4 6 2.7 1 6 10 20 I EP-6
10 4.5 6.5 4.3 1 8 12 22 II EP-7
16 5.8 8.2 5.5 1.2 10 13 26 II EP-8
25 8.1 11.1 7.2 1.5 11 15 33 lI EP-10
35 9 12.6 8.2 1.8 12 15 33 II EP-11
50 10.5 14.1 9 1.8 16 19 41 lI EP-12
70 12 16 10 2 16 22 46 II EP-13
95 13.5 18.1 10 2.3 20 23 51 II EP-14
Pin Type Copper Terminal (Insulated)
  • Material: E-Copper & AL 99.6%
  • Finish : Natural Bright / Electro Tinned
CABLE SIZE MM² DIMENSION IN MM Type PRODUCT CODE
A C D T B P L C1 L1
1.5 1.6 3.2 1.9 0.8 5 10 17 4.8 10 I EPI-17
2.5 2.3 3.9 1.9 0.8 5 10 17 5.5 10 I EPI-18
4 2.9 4.9 2.7 1.1 6 10 20 7.1 14 I EPI-20
6 3.6 5.6 2.7 1 6 10 20 7.1 14 I EPI-22
6 4 6 2.7 1.1 6 10 20 7.1 14 I EPI-23
10 4.5 6.5 4.3 1 8 12 22 7.9 16 II EPI-24
16 5.8 8.2 5.5 1.2 10 13 26 10 20 II EPI-25
