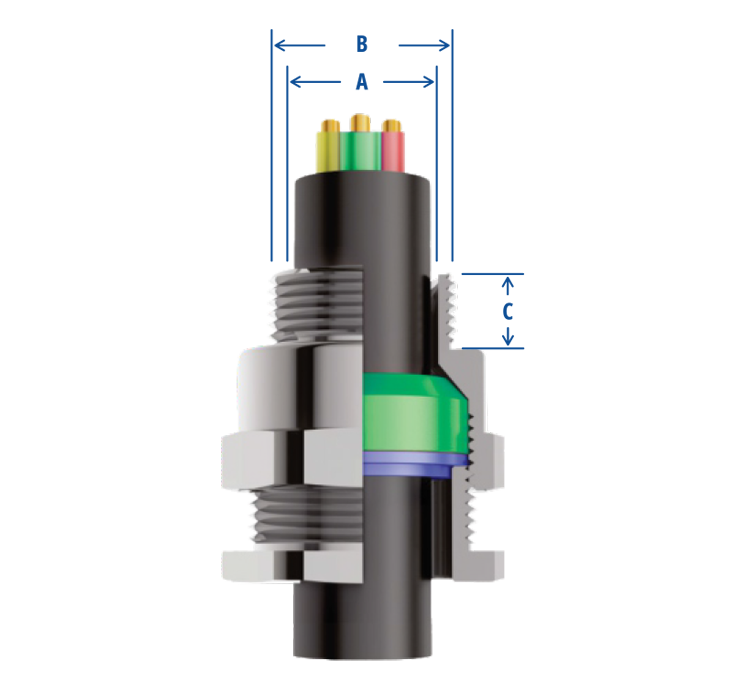

A1/A2 Type Industrial Cable Gland
- Type: A1/A2 Single Compression Industrial Cable Gland
- Cable types: Unarmoured
- Application: For indoor and outdoor use with all types of unarmoured cable where it is essential to provide IP66 or IP68 protection on the outer sheath of cable for circular, unarmoured plastic or rubber sheathed cables
- Gland material: Brass (CuZn39Pb3), Stainless Steel (304 or 316L), Aluminium (6082)
- IP Rating: IP66 & IP68
- Seal type: Displacement type
- Finish: Natural Brass or Nickle Plated or Electroless Nickle Plated
- Recommended Accessories: PVC/LSF Shroud, Lock nut, Earth tag, Serrated Washer, Adaptor / Reducer.
| GLAND SIZE | THREAD SIZE ‘B’ | THREAD LENGTH ‘C’ (MM) | CABLE DIAMETER ‘A’ | PRODUCT CODE | ||
|---|---|---|---|---|---|---|
| METRIC (ISO) | NPT | MIN | MAX | |||
| 20S-16 | M20 | 3/8” | 10 | 3.20 | 8.70 | EAG-20S-16 |
| 20S | M20 | 1/2” | 10 | 6.10 | 11.70 | EAG-20S |
| 20L | M20 | 1/2” | 10 | 6.50 | 14.00 | EAG-20L |
| 25 | M25 | 3/4” | 10 | 11.10 | 20.00 | EAG-25 |
| 32 | M32 | 1” | 10 | 17.00 | 26.30 | EAG-32 |
| 40 | M40 | 1-1/4” | 15 | 23.50 | 32.20 | EAG-40 |
| 50S | M50 | 1-1/2” | 15 | 31.00 | 38.20 | EAG-50S |
| 50L | M50 | 2” | 15 | 35.60 | 44.00 | EAG-50L |
| 63S | M63 | 2” | 15 | 41.50 | 49.90 | EAG-63S |
| 63L | M63 | 2-1/2” | 15 | 47.30 | 55.90 | EAG-63S |
| 75S | M75 | 2-1/2” | 15 | 54.00 | 61.90 | EAG-63L |
| 75L | M75 | - | 15 | 61.20 | 67.90 | EAG-75L |
| 90 | M90 | 3” | 20 | 66.60 | 79.90 | EEAG-90 |
| 100 | M100 | 3-1/2” | 20 | 76.00 | 91.00 | EAG-100 |

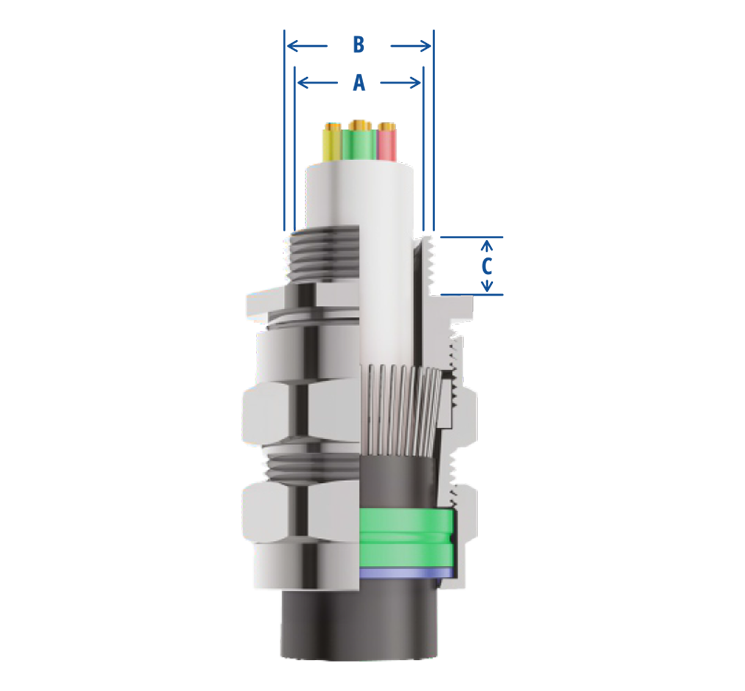

CW Type Industrial Cable Gland
- Type: CW Single Compression Industrial Cable Gland
- Cable types: Armoured (Single Wire Armour (SWA) Aluminium Wire (AWA))
- Application: Glands for use with all types of SWA cable. We recommend use in applications where it is essential to provide an IP66 seal on the outer sheath.
- Gland material: Brass (CuZn39Pb3)
- IP Rating: IP66
- Seal type: Weakback Sealing
- Finish: Natural Brass or Nickle Plated or Electroless Nickle Plated
- Recommended : PVC/LSF Shroud , Lock Nut , Earth Tag, Serrated Washer , Adaptor / Reducer.
- Accessories : We recommend use of Earth Tags for earth continuity.
| GLAND SIZE | THREAD SIZE ‘B’ | THREAD LENGTH ‘C’(MM) | CABLE DIAMETER ‘A’ | PRODUCT CODE | ||
|---|---|---|---|---|---|---|
| METRIC (ISO) | NPT | MIN | MAX | |||
| 20S | M20 | 1/2” | 10 | 11.50 | 8.70 | ECG-20S |
| 20L | M20 | 1/2” | 10 | 14.00 | 14.00 | ECG-20L |
| 25S | M25 | 3/4” | 10 | 18.00 | 20.00 | ECG-25S |
| 25L | M25 | 3/4” | 10 | 20.00 | 25.60 | ECG-25L |
| 32 | M32 | 1” | 10 | 26.30 | 26.30 | ECG-32 |
| 40 | M40 | 1-1/4” | 15 | 32.00 | 32.20 | ECG-40 |
| 50S | M50 | 1-1/2” | 15 | 38.20 | 38.20 | ECG-50S |
| 50L | M50 | 1-1/2” | 15 | 44.00 | 44.00 | ECG-50L |
| 63S | M63 | 2” | 15 | 50.10 | 49.90 | ECG-63S |
| 63L | M63 | 2” | 15 | 56.00 | 55.90 | ECG-63L |
| 75S | M75 | 2-1/2” | 15 | 62.00 | 61.90 | ECG-75S |
| 75L | M75 | 2-1/2” | 15 | 68.00 | 67.90 | ECG-75L |
| 90 | M90 | 3” | 20 | 80.50 | 79.90 | ECG-90 |

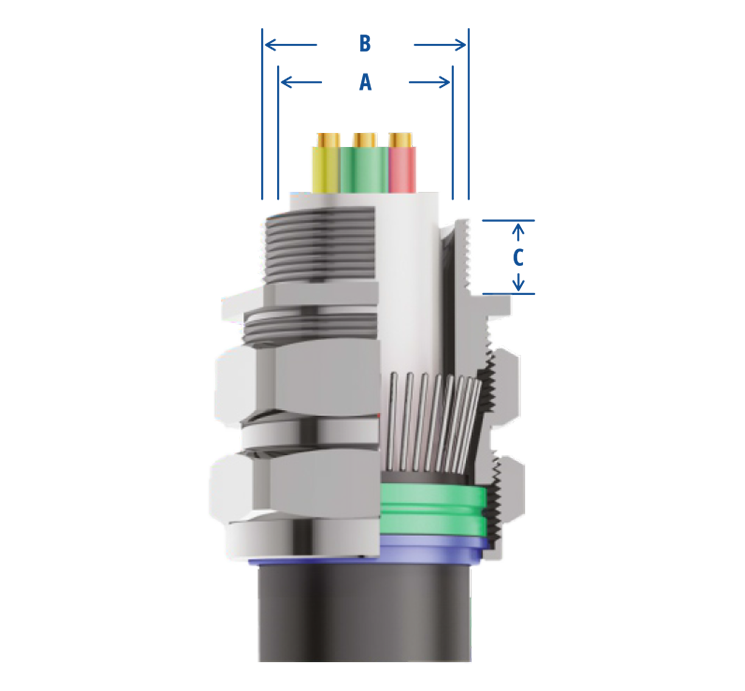

CW Type Industrial Cable Gland (Heavy Duty)
- Type: CW Single Compression Industrial Cable Gland
- Cable types: Single Wire Armour (SWA) Aluminum Wire Armour (AWA)
- Application: CW glands are suitable for indoor and outdoor use with all types of steel wire armoured cables outer seal grips sheath to achieve weatherproof seal.
- Gland material: Brass (CuZn39Pb3)
- IP Rating: IP54
- Finish: Natural Brass or Nickle Plated or Electroless Nickle Plated
- Recommended:PVC/LSF Shroud , Lock Nut , Earth Tag, Serrated Washer , Adaptor / Reducer.
- Accessories:We recommend use of Earth Tags for earth continuity.
| GLAND SIZE | THREAD SIZE ‘B’ | THREAD LENGTH ‘C’ | CABLE DIAMETER ‘A’ | PRODUCT CODE | ||
|---|---|---|---|---|---|---|
| METRIC (ISO) | NPT | MIN | MAX | |||
| 20S | M20 | 1/2” | 10 | 15.50 | 15.50 | EHDCG-20S |
| 20L | M20 | 1/2” | 10 | 20.00 | 20.00 | EHDCG-20L |
| 25S | M25 | 3/4” | 10 | 24.00 | 24.00 | EHDCG-25S |
| 25L | M25 | 3/4” | 10 | 27.20 | 27.20 | EHDCG-25L |
| 32S | M32 | 1” | 15 | 33.50 | 33.50 | EHDCG-32S |
| 32L | M32 | 1” | 15 | 33.50 | 33.50 | EHDCG-32L |
| 40S | M40 | 1-1/4” | 15 | 40.00 | 40.00 | EHDCG-40S |
| 40L | M40 | 1-1/4” | 15 | 40.00 | 40.00 | EHDCG-40L |
| 50S | M50 | 1-1/2” | 15 | 46.30 | 46.30 | EHDCG-50S |
| 50L | M50 | 1-1/2” | 15 | 52.60 | 52.60 | EHDCG-50L |
| 63S | M63 | 2” | 15 | 59.00 | 59.00 | EHDCG-63S |
| 63L | M63 | 2” | 15 | 65.3 | 65.3 | EHDCG-63L |
| 75S | M75 | 2-1/2” | 15 | 71.60 | 71.60 | EHDCG-75S |
| 75L | M75 | 2-1/2” | 15 | 78.00 | 78.00 | EHDCG-75L |
| 90S | M90 | 3” | 20 | 91.00 | 91.00 | EHDCG-90S |
| 90L | M90 | 3” | 20 | 91.00 | 91.00 | EHDCG-90L |

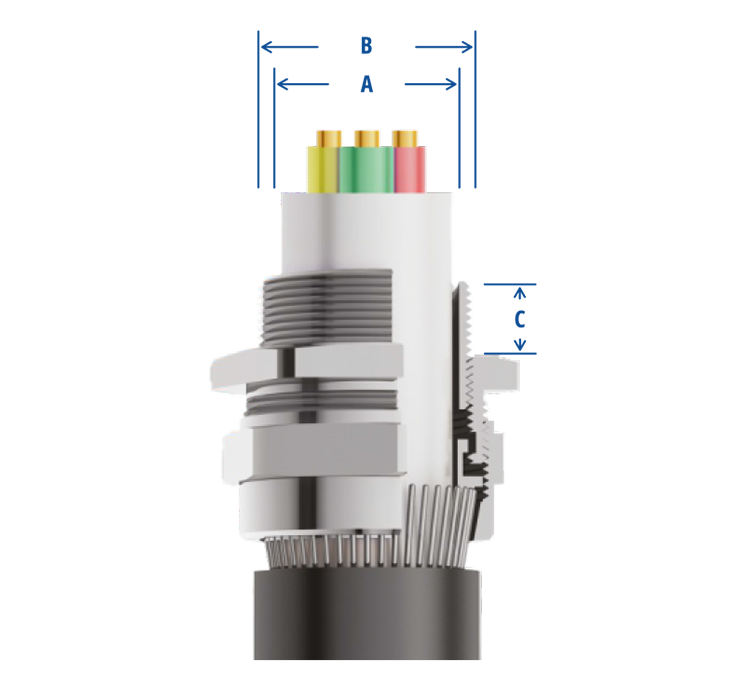

BW Type Industrial Cable Gland
- Type: BW Single Compression Industrial Cable Gland
- Cable types: Steel Wire Armour (SWA) Aluminium Wire Armour (AWA)
- Application: Brass Gland for dry indoor use with SWA cables. No loose parts, allows easy Installation Two part armour lock
- Gland material: Brass (CuZn39Pb3)
- IP Rating: IP30
- Finish: Natural Brass or Nickle Plated or Electroless Nickle Plated
- Recommended Accessories: PVC/LSF Shroud, Lock nut, Earth tag, Serrated Washer, Adaptor / Reducer.
- We recommend use of Earth Tags for earth continuity.
| GLAND SIZE | THREAD SIZE ‘B’ METRIC (ISO) | THREAD LENGTH ‘C’ | CABLE DIAMETER ‘A’ | PRODUCT CODE | |
|---|---|---|---|---|---|
| METRIC(ISO) | MIN | MAX | |||
| 20S | M20 | 10 | 11.50 | 16.00 | EBG-20S |
| 20 L | M20 | 10 | 14.00 | 21.20 | EBG-20L |
| 25 | M20 | 10 | 20.00 | 27.00 | EBG-25 |
| 32 | M32 | 10 | 26.20 | 33.50 | EBG-32 |
| 40 | M40 | 15 | 32.50 | 40.00 | EBG-40 |
| 50 | M50 | 15 | 44.40 | 52.50 | EBG-50 |
| 63 | M63 | 15 | 55.4 | 65.5 | EBG-63 |
| 75 | M75 | 15 | 69.50 | 79.00 | EBG-75 |

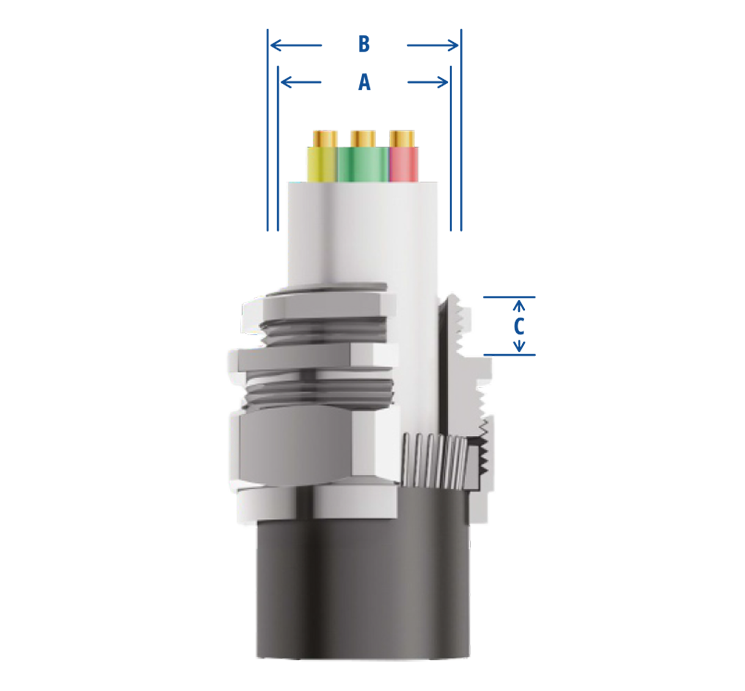

BW Type Industrial Cable Gland (Heavy Duty)
- Type: BW Single Compression Industrial Cable Gland
- Cable types: Steel Wire Armour (SWA) & Aluminium Wire Armour (AWA)
- Application: For dry indoor use with SWA cables. Three part armour lock
- Gland material: Brass (CuZn39Pb3)
- IP Rating: IP30
- Finish: Natural Brass or Nickle Plated or Electroless Nickle Plated
- Recommended: PVC/LSF Shroud , Lock Nut , Earth Tag, Serrated Washer , Adaptor / Reducer.
- Accessories: We recommend use of Earth Tags for earth continuity.
| GLAND SIZE | THREAD SIZE ‘B’ METRIC (ISO) | THREAD LENGTH ‘C’ | CABLE DIAMETER ‘A’ (MM) | PRODUCT CODE | |
|---|---|---|---|---|---|
| MIN | MAX | ||||
| 20L | M20 | 10 | 11.50 | 15.50 | EHDBG-20S |
| 20L | M20 | 10 | 14.00 | 20.50 | EHDBG-20L |
| 25S | M25 | 10 | 18.00 | 24.00 | EHDBG-25S |
| 25L | M25 | 10 | 20.00 | 27.20 | EHDBG-25L |
| 32 | M32 | 10 | 26.30 | 33.50 | EHDBG-32 |
| 40 | M40 | 15 | 32.00 | 40.00 | EHDBG-40 |
| 50S | M50 | 15 | 38.20 | 46.30 | EHDBG-50S |
| 50L | M50 | 15 | 44.00 | 52.60 | EHDBG-50L |
| 63S | M63 | 15 | 56.10 | 59.00 | EHDBG-63S |
| 63L | M63 | 15 | 56.00 | 65.30 | EHDBG-63L |
| 75S | M75 | 15 | 62.00 | 71.60 | EHDBG-75S |
| 75L | M75 | 15 | 68.00 | 78.00 | EHDBG-75L |
| 90L | M90 | 20 | 80.50 | 91.00 | EHDBG-90L |

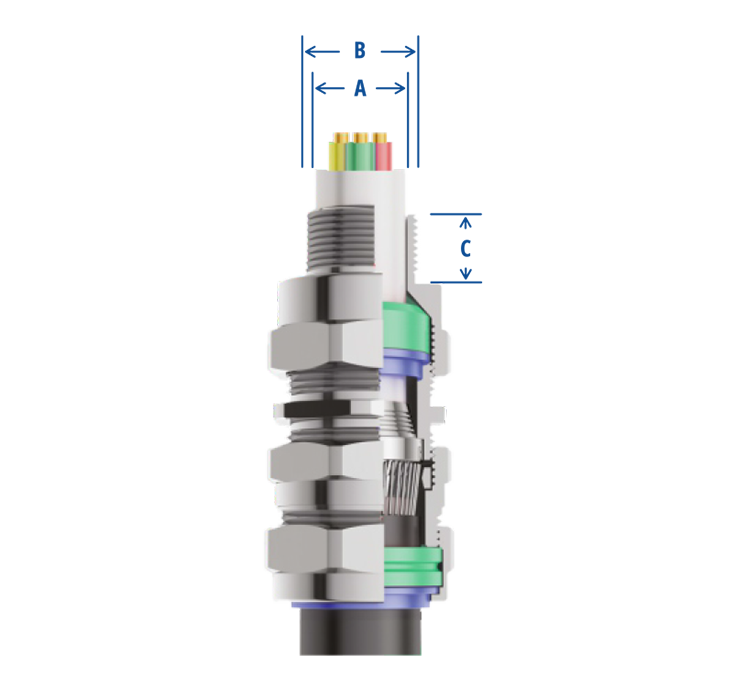

E1W Type Industrial Cable Gland
- Type: E1W Single Compression Industrial Cable Gland
- Cable types: Steel Wire Armour (SWA) & Aluminium Wire Armour (AWA)
- Application: For use with all type of SWA cable for indoor and outdoor application. Used in Applications where it is essential to provide an IP66 seal on the outer sheath. Armour lock with separate armour locking ring, ideal for checking electrical continuity
- Gland material: Brass (CuZn39Pb3), Stainless Steel (304 or 316L), Aluminium (6082)
- IP Rating: IP66
- Finish: Natural Brass or Nickle Plated or Electroless Nickle Plated
- Recommended Accessories: PVC/LSF Shroud, Lock nut, Earth tag, Serrated Washer, Adaptor / Reducer.
- We recommend use of Earth Tags for earth continuity.
| GLAND SIZE | THREAD SIZE ‘B’ | THREAD LENGTH ‘C’(MM) | CABLE DIAMETER ‘A’ | PRODUCT CODE | ||
|---|---|---|---|---|---|---|
| METRIC (ISO) | NPT | MIN | MAX | |||
| 20S | M20 | 1/2” | 15 | 8.80 | 16.00 | EE1W-20S |
| 20L | M20 | 1/2” | 15 | 11.40 | 20.80 | EE1W-20L |
| 25S | M25 | 3/4” | 15 | 13.00 | 24.00 | EE1W-25S |
| 25L | M25 | 3/4” | 15 | 17.30 | 27.40 | EE1W-25L |
| 32S | M32 | 1” | 15 | 20.00 | 31.00 | EE1W-32S |
| 32L | M32 | 1” | 15 | 24.20 | 33.50 | EE1W-32L |
| 40S | M40 | 1-1/4” | 15 | 26.00 | 36.00 | EE1W-40S |
| 40L | M40 | 1-1/4” | 15 | 29.50 | 40.00 | EE1W-40L |
| 50S | M50 | 1-1/2” | 15 | 33.00 | 46.50 | EE1W-50S |
| 50L | M40 | 1-1/4” | 15 | 38.00 | 52.60 | EE1W-50L |
| 63S | M63 | 2” | 20 | 44.00 | 59.00 | EE1W-63S |
| 63L | M63 | 2” | 20 | 50.00 | 66.00 | EE1W-63L |
| 75S | M75 | 2-1/2” | 20 | 56.00 | 71.00 | EEE1W-75S |
| 75L | M75 | 2-1/2” | 20 | 62.00 | 78.00 | EE1W-75L |
| 90L | M90 | 3 | 20 | 65.00 | 96.00 | EE1W-90L |
Shrouds

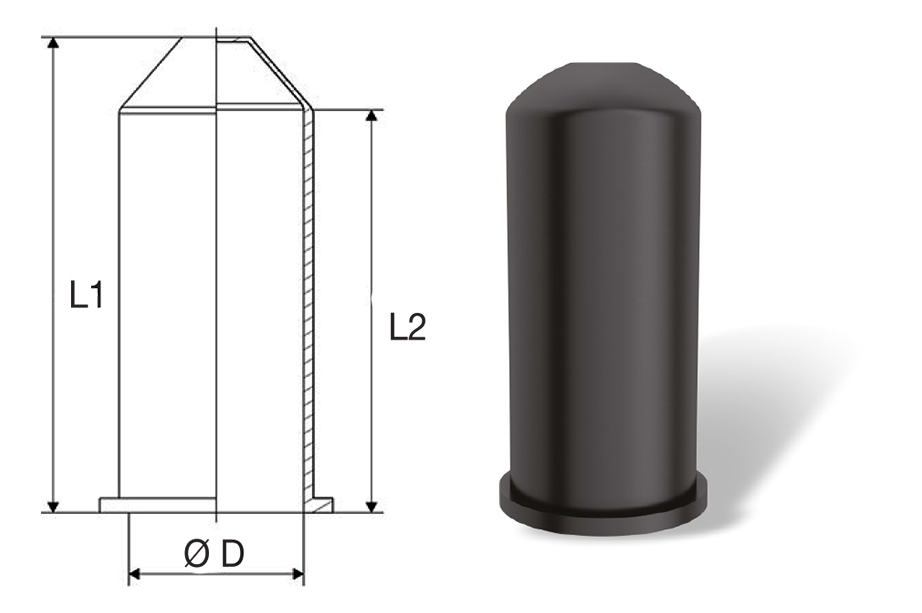

Shrouds 1
- Application: Shrouds are used to minimize the risk of dirt or foreign substances gathering on the Cable gland body.
- Material & Finish: DIP- Moulded PVC Shrouds & LSF Shrouds
| SIZE | Ø D | L1 | L2 |
|---|---|---|---|
| M20 | 34 | 77 | 95 |
| M25 | 38 | 75 | 95 |
| M32 | 48 | 95 | 115 |
| M40 | 53 | 95 | 115 |
| M50 | 60 | 95 | 115 |
| M63 | 70 | 100 | 120 |
| M75 | 86 | 110 | 130 |
| M90 | 104 | 130 | 150 |
| M100 | 128 | 130 | 150 |

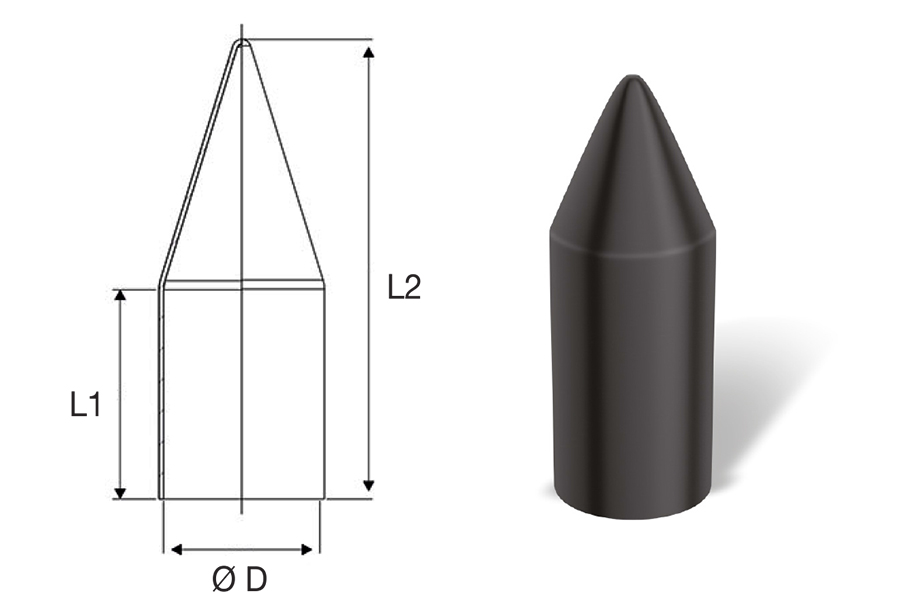

Shrouds 2
- Application: Shrouds are used to minimize the risk of dirt or foreign substances gathering on the Cable gland body.
- Material & Finish: DIP- Moulded PVC Shrouds & LSF Shrouds
| Ø D | L1 | L2 |
|---|---|---|
| 35 | 23 | 80 |
| 35 | 25 | 80 |
| 40 | 26 | 90 |
| 40 | 27 | 90 |
| 40 | 30 | 85 |
| 45 | 33 | 100 |
| 55 | 35 | 115 |
| 40 | 38 | 100 |
| 50 | 43 | 105 |
| 50 | 46 | 110 |
| 55 | 48 | 115 |
| 60 | 40 | 115 |
| 50 | 53 | 105 |
| 55 | 55 | 120 |
| 55 | 58 | 125 |
| 60 | 64 | 135 |
| 70 | 68 | 160 |
| 85 | 79 | 170 |
| 70 | 82 | 150 |
| 80 | 85 | 170 |
| 70 | 95 | 170 |
| 100 | 103 | 205 |
